PowRLock Single Acting Hollow Pistons
PowRLock Single Acting Hollow Pistons
SKU:HYD-7d8eed
Versatile PowRLock Single Acting Hollow Pistons with up to 24,000 lbs force. Ideal for hydraulic clamping applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

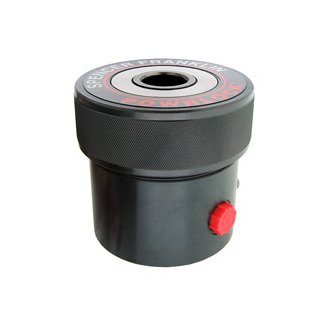

Experience the versatility and ease of PowRLock Single Acting Hollow Pistons. These patented hollow piston heads, with a maximum force of 24,000 pounds, offer unparalleled mounting flexibility. Able to function in push or pull motions, they double stroke length and oil volume when the internal spring is removed. With a maximum oil pressure of 10,000 psi and 0.31-inch piston stroke, these hollow pistons deliver exceptional performance. Designed to mount effortlessly over any length bolt or rod, they provide reliable operation for diverse hydraulic clamping applications.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
1.99 in²
Specifications Force Per 1000 Psi
1990 lb
Specifications Hollow Piston Inside Diameter
0.69 in
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
0.62 in³
Specifications Outside Cylinder Diameter
2.50 in
Specifications Overall Length
2.25 in
Specifications Piston
Hollow
Specifications Piston Rod Diameter
1.50 in
Specifications Piston Stroke Max
0.31 in
Specifications Ram Force Max
19900 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
2.50 lb
