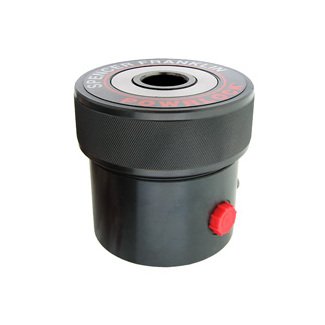

The PowRLock Single Acting Hollow Pistons offer unparalleled versatility and ease of installation. With the ability to accommodate any length bolt, stud, or rod, these patented hollow piston heads can be mounted for both push and pull motions. Featuring a maximum force capacity of 24,000 pounds, these pistons have an extended stroke when the internal spring is removed, effectively doubling the stroke length. Designed with precision and performance in mind, these pistons uphold the highest standards of reliability and efficiency.
Product Specifications
Specifications Country Of Origin
-
Specifications Effective Piston Area
4.87 in²
Specifications Force Per 1000 Psi
4867 lb
Specifications Hollow Piston Inside Diameter
1.01 in
Specifications Mounting Thread
M6-16NC
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
5000 psi
Specifications Oil Volume Full Stroke
2.59 in³
Specifications Outside Cylinder Diameter
3.50 in
Specifications Overall Length
3.82 in
Specifications Piston
Hollow
Specifications Piston Rod Diameter
2.38 in
Specifications Piston Stroke Max
0.53 in
Specifications Ram Force Max
24335 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
8.50 lb
