PowRLock Single Acting Solid Piston - Hydraulic Clamping
PowRLock Single Acting Solid Piston - Hydraulic Clamping
SKU:HYD-969f43
High-force PowRLock Single Acting Solid Piston for punching, clamping, and locating applications. With up to 27,500 lbs of force.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PowRLock Single Acting Solid Piston - Hydraulic Clamping
$129.99
Quantity: 1
Claim Your Seller Account
PowRLock Single Acting Solid Piston - Hydraulic Clamping
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

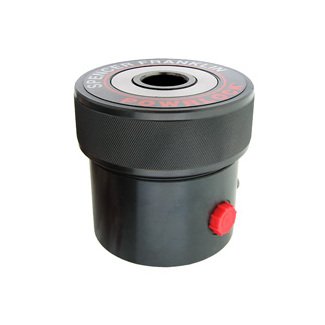

The PowRLock Single Acting Solid Piston is designed for high force applications, delivering up to 27,500 pounds of force. With compact heads, tapped holes, and threaded O.D.'s for versatile mountings. Removed internal spring doubles stroke and oil volume, ideal for punching, clamping, locating, and ejection tasks. Featuring an oil pressure rating of 5000 psi, this piston ensures reliability and performance.
Product Specifications
Specifications Country Of Origin
-
Specifications Effective Piston Area
0.82 in²
Specifications Force Per 1000 Psi
820 lb
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
5000 psi
Specifications Oil Volume Full Stroke
0.81 in³
Specifications Outside Cylinder Diameter
1.50 in
Specifications Overall Length
3.06 in
Specifications Piston
Solid
Specifications Piston Rod Diameter
0.50 in
Specifications Piston Stroke Max
0.98 in
Specifications Ram Force Max
4100 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1.00 lb
