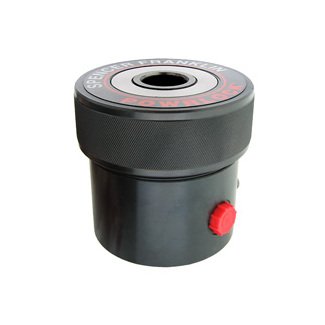

PowRLock Single Acting Solid Pistons
PowRLock Single Acting Solid Pistons
SKU:HYD-8783df
Compact, high-force solid pistons ideal for punching, clamping, and locating tasks. Doubled stroke and oil volume for efficiency.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
PowRLock Single Acting Solid Pistons
$99.99
Quantity: 1
Claim Your Seller Account
PowRLock Single Acting Solid Pistons
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the compact and high-force capabilities of PowRLock Single Acting Solid Pistons. With tapped holes and threaded O.D.'s for versatile mountings, these pistons deliver up to 27,500 pounds of force. Ideal for punching, clamping, locating, and ejection tasks, these pistons offer doubled stroke and oil volume when the internal spring is removed. Ensure restricted piston travel within safety limits for optimal performance.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
2.76 in²
Specifications Force Per 1000 Psi
2761 lb
Specifications Mounting Thread
3/8"-24UNF
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
2.07 in³
Specifications Outside Cylinder Diameter
2.63 in
Specifications Overall Length
2.75 in
Specifications Piston
Solid
Specifications Piston Rod Diameter
1.38 in
Specifications Piston Stroke Max
0.75 in
Specifications Ram Force Max
27610 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
4.00 lb
