PowRLock Solid Piston Single Acting Hydraulic Clamp
PowRLock Solid Piston Single Acting Hydraulic Clamp
SKU:HYD-074e2b
Compact, high-force Solid Piston for hydraulic clamping, ideal for punching, clamping, locating & ejection. Max force: 27,500 lbs, Made in the US.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PowRLock Solid Piston Single Acting Hydraulic Clamp
$129.99
Quantity: 1
Claim Your Seller Account
PowRLock Solid Piston Single Acting Hydraulic Clamp
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

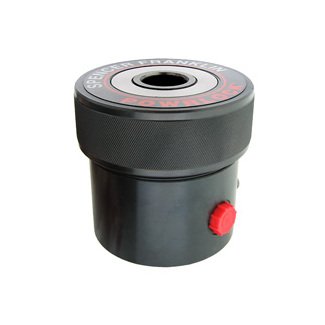

The PowRLock Solid Piston Single Acting Hydraulic Clamp delivers exceptional force capabilities, up to 27,500 pounds, for tasks like punching, clamping, locating, and ejection. With a compact design and versatile mounting options, this Solid Piston head, with an effective piston area of 0.30 in², ensures precision and reliability in various applications. Featuring an outside cylinder diameter of 1.00 in, this product offers a maximum piston stroke of 0.50 in and a maximum oil pressure rating of 10,000 psi. Made in the US, it complies with Prop 65 and is ideal for industrial demands.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
0.30 in²
Specifications Force Per 1000 Psi
307 lb
Specifications Mounting Thread
1"-12UNF
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
0.15 in³
Specifications Outside Cylinder Diameter
1.00 in
Specifications Overall Length
2.63 in
Specifications Piston
Solid
Specifications Piston Rod Diameter
0.38 in
Specifications Piston Stroke Max
0.50 in
Specifications Ram Force Max
3070 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
0.75 lb
