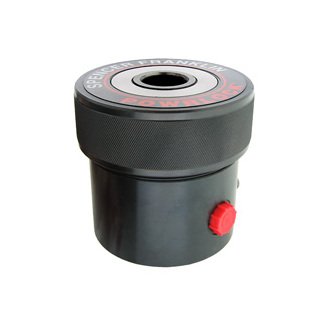

PowRLock Solid Pistons Single Acting
PowRLock Solid Pistons Single Acting
SKU:HYD-8bf142
High-force PowRLock Solid Pistons for precise hydraulic clamping operations. Compact design, up to 27,610 lbs force, ideal for punching, clamping, locating & ejection.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
PowRLock Solid Pistons Single Acting
$159.99
Quantity: 1
Claim Your Seller Account
PowRLock Solid Pistons Single Acting
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PowRLock Solid Pistons Single Acting are robust and high-force hydraulic clamping components designed for precision operations. With a solid piston construction and an outside cylinder diameter of 2.63 inches, these pistons provide up to 27,610 pounds of force, making them ideal for punching, clamping, locating, and ejection tasks. The compact design features tapped holes and threaded O.D.'s for versatile mountings, while the removal of the internal spring allows for doubled stroke capability. This product meets stringent industry standards for durability and performance, ensuring reliable operation in demanding environments. Please note: Ensure restricted piston travel within 90% of the maximum stroke to maintain optimal functionality.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
2.76 in²
Specifications Force Per 1000 Psi
2761 lb
Specifications Mounting Thread
3/8"-24UNF
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
0.69 in³
Specifications Outside Cylinder Diameter
2.63 in
Specifications Overall Length
2.75 in
Specifications Piston
Solid
Specifications Piston Rod Diameter
1.38 in
Specifications Piston Stroke Max
0.25 in
Specifications Ram Force Max
27610 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
4.00 lb
