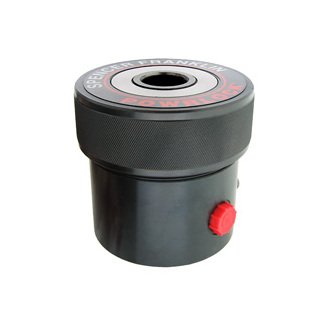

PowRLock Solid Pistons - Single Acting - Hydraulic Clamping
PowRLock Solid Pistons - Single Acting - Hydraulic Clamping
SKU:HYD-d3c685
Compact and powerful solid pistons for hydraulic clamping operations. Up to 27,500 lbs force. Ideal for punching, clamping, locating, and ejection.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PowRLock Solid Pistons - Single Acting - Hydraulic Clamping
$289.99
Quantity: 1
Claim Your Seller Account
PowRLock Solid Pistons - Single Acting - Hydraulic Clamping
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your hydraulic clamping operations with the PowRLock Solid Pistons - Single Acting. These compact pistons deliver high force capabilities, supporting up to 27,500 pounds of force for tasks like punching, clamping, locating, and ejection. With tapped holes and threaded O.D.'s for versatile mounting options, these solid pistons offer doubled stroke and oil volume by removing the internal spring. Built with precision and durability in mind, these pistons are designed to optimize performance and reliability.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
0.69 in²
Specifications Force Per 1000 Psi
690 lb
Specifications Mounting Thread
1 1/2"-16UNF
Specifications Oil Port Diameter Nptf
0.13 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
0.28 in³
Specifications Outside Cylinder Diameter
1.50 in
Specifications Overall Length
3.53 in
Specifications Piston
Solid
Specifications Piston Rod Diameter
0.63 in
Specifications Piston Stroke Max
0.41 in
Specifications Ram Force Max
6900 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1.75 lb
