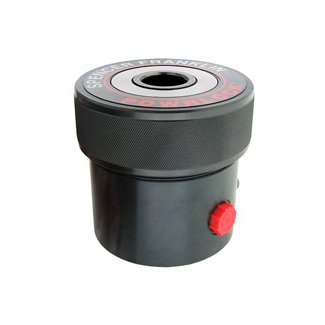

PowRLock Solid Pistons - Single Acting Hydraulic Clamps
PowRLock Solid Pistons - Single Acting Hydraulic Clamps
SKU:HYD-421673
Compact and powerful PowRLock Solid Pistons - Single Acting ideal for clamping, punching & more. Max force up to 27,500 lbs. for precision applications.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
PowRLock Solid Pistons - Single Acting Hydraulic Clamps
$139.99
Quantity: 1
Claim Your Seller Account
PowRLock Solid Pistons - Single Acting Hydraulic Clamps
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PowRLock Solid Pistons - Single Acting Hydraulic Clamps are engineered for high force applications, delivering up to 27,500 pounds of precise force. Designed with compact solid piston PowRlock heads, these clamps feature tapped holes and threaded O.D.'s for versatile mountings. By removing the internal spring, the stroke can be doubled with increased oil volume efficiency, making them ideal for punching, clamping, locating, and ejection tasks. With an oil pressure rating of up to 10,000 psi and meeting stringent quality standards, the PowRLock Solid Pistons ensure reliable performance in industrial settings. Do not exceed 90% of the maximum stroke for safe usage.
Product Specifications
Specifications Country Of Origin
US
Specifications Effective Piston Area
0.69 in²
Specifications Force Per 1000 Psi
690 lb
Specifications Mounting Thread
1 1/8"-18UNEF
Specifications Oil Port Diameter Nptf
0.25 in
Specifications Oil Pressure Rating Max
10000 psi
Specifications Oil Volume Full Stroke
0.69 in³
Specifications Outside Cylinder Diameter
1.13 in
Specifications Overall Length
3.97 in
Specifications Piston
Solid
Specifications Piston Rod Diameter
0.63 in
Specifications Piston Stroke Max
1.00 in
Specifications Ram Force Max
6900 lb
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Specifications Weight
1.00 lb
