Experience precision at its finest with the PPC110D Precision Power Chuck Models. Hardened for long-term accuracy with .0001” (0.0025mm) TIR, ideal for industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
PPC110D Precision Power Chuck Models
$499.99
Quantity: 1
Claim Your Seller Account
PPC110D Precision Power Chuck Models
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

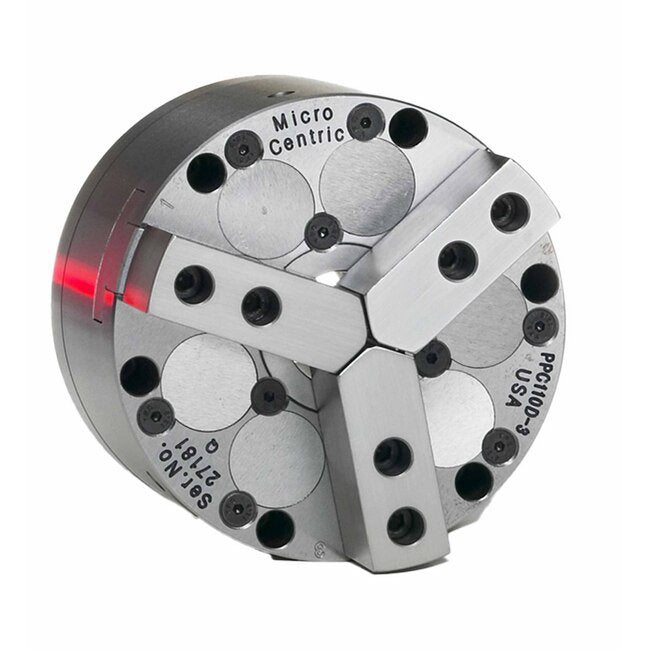

The PPC110D Precision Power Chuck Models feature a 4.33” (110mm) chuck diameter, available in 3 jaw and 2 jaw models for versatile applications. With a QC precision change jaw system, dowel pin located models, and options for standard and long stroke models, these chucks offer exceptional precision and performance. The hardened chuck body, actuators, and master jaws ensure long-term accuracy, with repeating accuracy of .0001” (0.0025mm) TIR. Perfect for industrial settings requiring high precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0001 in | .0025 mm
Specifications Actuator Stroke
.340 in | 8.6 mm
Specifications Chuck Weight
7.0 lb | 3.2 kg
Specifications Jaw Stroke
.180 in | 4.6 mm
Specifications Max Clamp Force
3,760 lbs | 16.7 kN
Specifications Max Speed
5,000 rpm
Specifications Min Draw Tube Force
250 lbf | 1.1 kN
Specifications Moment Of Inertia
.13 lb-ft² | 0.005 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
1.063 in | 27 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request Various flat, threaded, and tapered nose spindle mounting plates are available on request.
