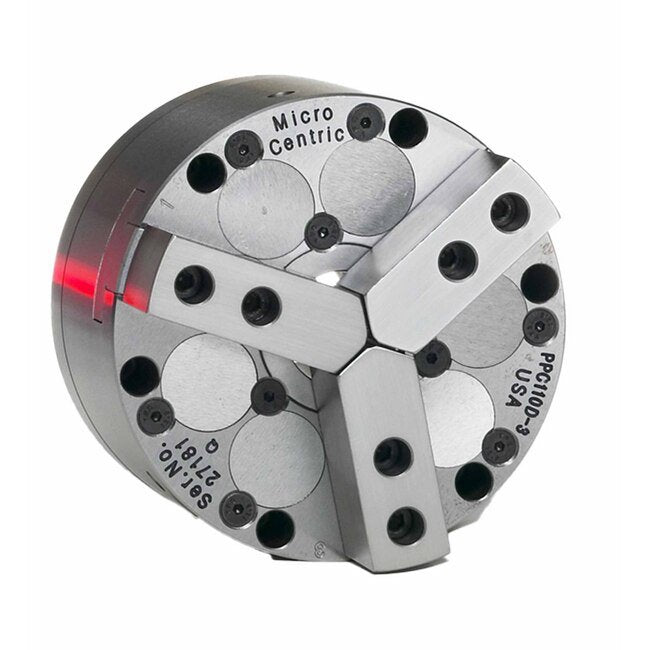

The PPC110D Precision Power Chuck Models offer exceptional precision and durability for a wide range of machining applications. With a chuck diameter of 4.33'' (110mm), these models come in 3 jaw and 2 jaw configurations, featuring a QC precision change jaw system for quick and efficient jaw adjustments. The hardened chuck body, actuators, and master jaws ensure long-term accuracy and performance, while the precision fit master jaws minimize jaw lift. Meeting stringent standards, these chucks provide a repeating accuracy of .0001'' (0.0025mm), making them ideal for industries requiring uncompromising precision.
Product Specifications
Specifications Accuracy
.0001 in | .0025 mm
Specifications Actuator Stroke
.340 in | 8.6 mm
Specifications Chuck Weight
7.0 lb | 3.2 kg
Specifications Item No
14 504 040
Specifications Jaw Stroke
.120 in | 3.0 mm
Specifications Max Clamp Force
4,600 lbs | 20.5 kN
Specifications Max Speed
6,000 rpm
Specifications Min Draw Tube Force
250 lbf | 1.1 kN
Specifications Moment Of Inertia
.13 lb-ft² | 0.005 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
1.063 in | 27 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request Various flat, threaded, and tapered nose spindle mounting plates are available on request.
