Experience precision like never before with PPC110D Precision Power Chuck Models. Ideal for high-accuracy machining applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
PPC110D Precision Power Chuck Models - High Precision Chucking Solutions
$599.99
Quantity: 1
Claim Your Seller Account
PPC110D Precision Power Chuck Models - High Precision Chucking Solutions
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

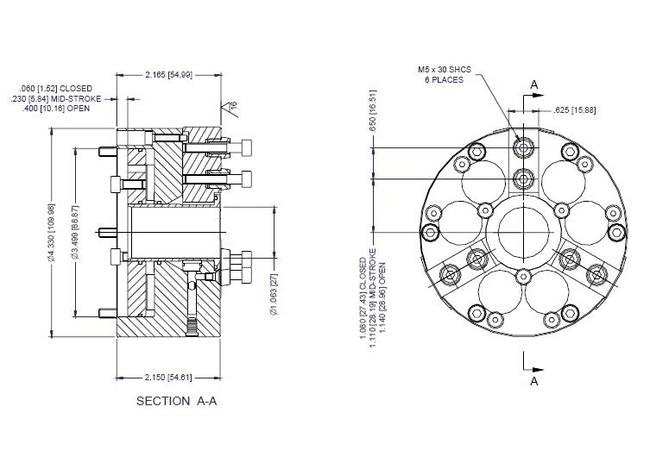

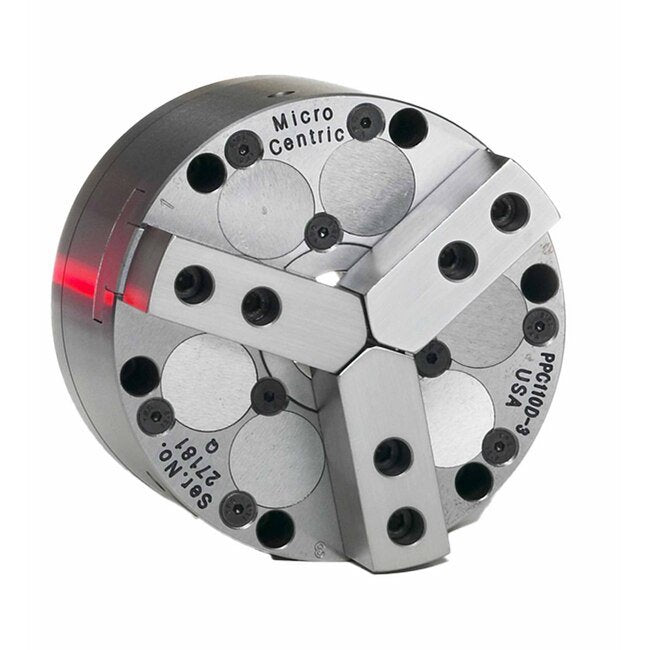

The PPC110D Precision Power Chuck Models offer exceptional chucking precision with a 4.33â (110mm) chuck diameter, available in 3 jaw and 2 jaw models. Featuring a QC precision change jaw system, dowel pin located models, and standard/long stroke options, these chucks ensure unparalleled accuracy. With a 1.063â (27mm) through hole and .0001â (0.0025mm) TIR repeating accuracy, these chucks are designed for long-term performance. Hardened chuck body, actuators, and master jaws minimize jaw lift, providing reliable and durable service. Maximize efficiency and accuracy with the PPC110D Precision Power Chuck Models.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0001 in | .0025 mm
Specifications Actuator Stroke
.340 in | 8.6 mm
Specifications Chuck Weight
7.0 lb | 3.2 kg
Specifications Item No
14 504 039
Specifications Jaw Stroke
.120 in | 3.0 mm
Specifications Max Clamp Force
4,600 lbs | 20.5 kN
Specifications Max Speed
6,000 rpm
Specifications Min Draw Tube Force
250 lbf | 1.1 kN
Specifications Moment Of Inertia
.13 lb-ft² | 0.005 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
1.063 in | 27 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request Various flat, threaded, and tapered nose spindle mounting plates are available on request.
