Achieve precision and reliability with the PPC110D Precision Power Chuck Models. 4.33" chuck diameter, .0001" repeating accuracy, ideal for high-performance machining.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
PPC110D Precision Power Chuck Models with QC Precision Change Jaw System
$899.99
Quantity: 1
Claim Your Seller Account
PPC110D Precision Power Chuck Models with QC Precision Change Jaw System
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

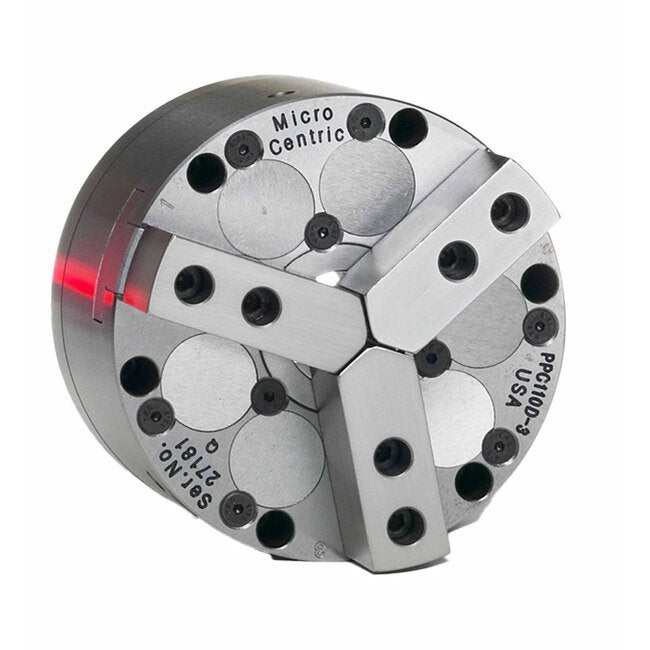

The PPC110D Precision Power Chuck Models are designed for precision machining applications, featuring a 4.33" chuck diameter with both 3 jaw and 2 jaw models. Equipped with a QC precision change jaw system and dowel pin located models, these chucks come in standard and long stroke variations. With a through hole of 1.063", hardened chuck body, actuators, and master jaws, these models ensure long-term accuracy and performance. The repeating accuracy of .0001" (0.0025mm) TIR guarantees consistent results for your machining needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0001 in | .0025 mm
Specifications Actuator Stroke
.340 in | 8.6 mm
Specifications Chuck Weight
7.0 lb | 3.2 kg
Specifications Item No
14 504 041
Specifications Jaw Stroke
.120 in | 3.0 mm
Specifications Max Clamp Force
3,065 lbs | 13.6 kN
Specifications Max Speed
6,000 rpm
Specifications Min Draw Tube Force
250 lbf | 1.1 kN
Specifications Moment Of Inertia
.13 lb-ft² | 0.005 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
1.063 in | 27 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request Various flat, threaded, and tapered nose spindle mounting plates are available on request.
