PPC110D Precision Power Chuck Models with Superior Precision
PPC110D Precision Power Chuck Models with Superior Precision
SKU:PRE-307cdd
Achieve unparalleled precision with the PPC110D Precision Power Chuck Models. Ideal for demanding machining applications.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
PPC110D Precision Power Chuck Models with Superior Precision
$699.99
Quantity: 1
Claim Your Seller Account
PPC110D Precision Power Chuck Models with Superior Precision
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

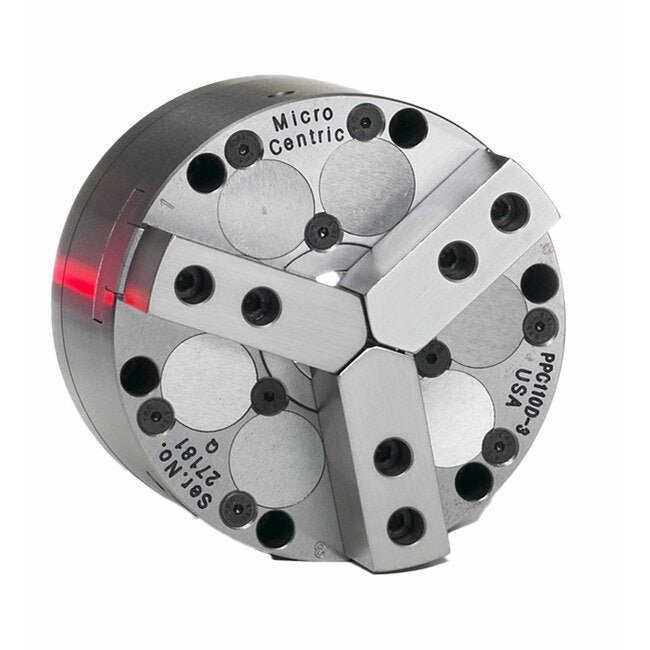

The PPC110D Precision Power Chuck Models offer exceptional precision and durability for a wide range of machining applications. With a chuck diameter of 4.33 inches and options for 3 jaw and 2 jaw models, this precision chuck features a QC precision change jaw system and dowel pin-located models. It comes in standard and long stroke variants, with a through hole of 1.063 inches to accommodate various workpieces. The hardened chuck body, actuators, and master jaws ensure long-term accuracy and performance, with a repeating accuracy of .0001 inches (0.0025mm) TIR. Ideal for institutional buyers requiring high precision and reliability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0001 in | .0025 mm
Specifications Actuator Stroke
.340 in | 8.6 mm
Specifications Chuck Weight
7.0 lb | 3.2 kg
Specifications Jaw Stroke
.180 in | 4.6 mm
Specifications Max Clamp Force
3,760 lbs | 16.7 kN
Specifications Max Speed
5,000 rpm
Specifications Min Draw Tube Force
250 lbf | 1.1 kN
Specifications Moment Of Inertia
.13 lb-ft² | 0.005 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
1.063 in | 27 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request Various flat, threaded, and tapered nose spindle mounting plates are available on request.
