PPC110D Precision Power Chuck Set
PPC110D Precision Power Chuck Set
SKU:PRE-1b8eca
Achieve unparalleled precision and efficiency with the PPC110D Precision Power Chuck Set. Ideal for industrial operations.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
PPC110D Precision Power Chuck Set
$899.99
Quantity: 1
Claim Your Seller Account
PPC110D Precision Power Chuck Set
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

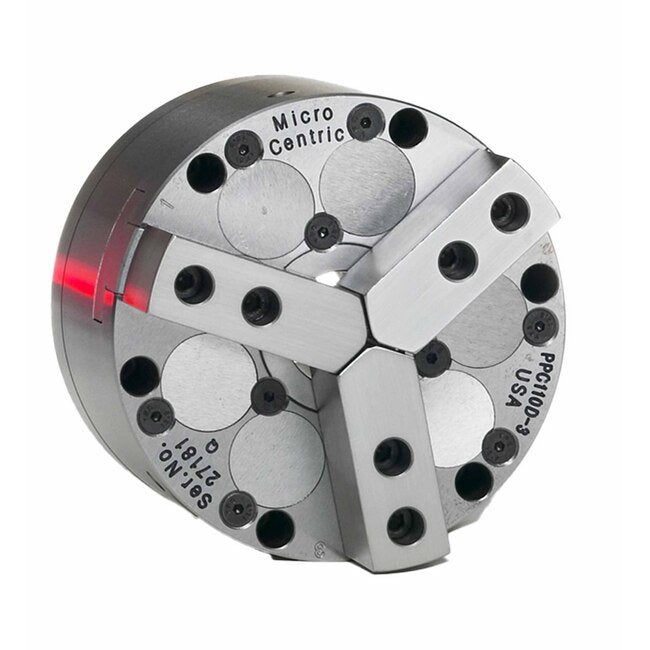

The PPC110D Precision Power Chuck Set offers unmatched precision and performance for industrial operations. With a 4.33" chuck diameter, 3 jaw and 2 jaw models, and a QC precision change jaw system, this set ensures high accuracy and efficiency. Featuring hardened components for long-term durability, a through hole of 1.063", and precise repeatability of .0001", this power chuck set is designed to meet the stringent requirements of government and institutional procurement.
Ready to Grow Without Cash Flow Constraints?

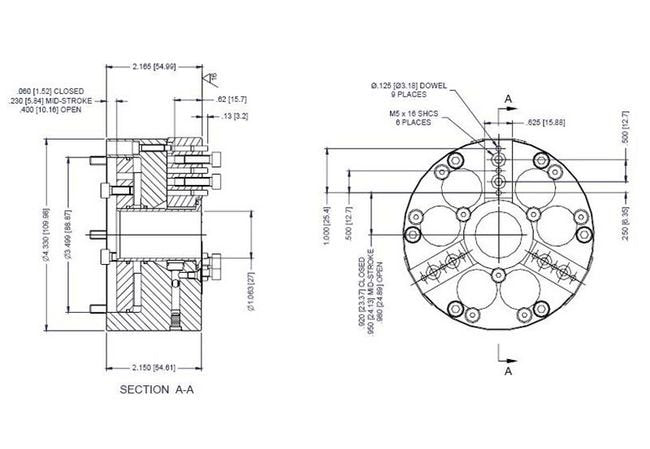

Product Specifications
Specifications Accuracy
.0001 in | .0025 mm
Specifications Actuator Stroke
.340 in | 8.6 mm
Specifications Chuck Weight
7.0 lb | 3.2 kg
Specifications Item No
14 504 043
Specifications Jaw Stroke
.120 in | 3.0 mm
Specifications Max Clamp Force
3,065 lbs | 13.6 kN
Specifications Max Speed
6,000 rpm
Specifications Min Draw Tube Force
250 lbf | 1.1 kN
Specifications Moment Of Inertia
.13 lb-ft² | 0.005 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
1.063 in | 27 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request Various flat, threaded, and tapered nose spindle mounting plates are available on request.
