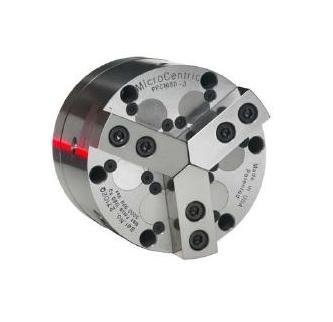

The PPC165D Precision Power Chuck Models are engineered for precision machining operations, featuring a 6.45" (165mm) chuck diameter with both 3 jaw and 2 jaw models available. These chucks are designed with a QC precision change jaw system for efficient setup, along with standard and long stroke models to suit diverse machining requirements. With a hardened chuck body, actuators, and master jaws, these models deliver long-term accuracy and superior performance. The precision fit master jaws minimize jaw lift, ensuring consistent machining quality. Achieve remarkable repeating accuracy of .0001" (0.0025mm) TIR with these reliable and durable power chuck models.
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.510 in | 13.0 mm
Specifications Chuck Weight
25.2 lb | 11.4 kg
Specifications Item No
14 506 062
Specifications Jaw Stroke
.180 in | 4.6 mm
Specifications Max Clamp Force
8,370 lbs | 37.2 kN
Specifications Max Draw Tube Force
3,640 lbs | 16.2 kN
Specifications Max Speed
5,000 rpm
Specifications Min Draw Tube Force
350 lbf | 1.5 kN
Specifications Moment Of Inertia
.99 lb-ft² | 0.04 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
1.375 in | 35 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-5, 140mm flat nose as well as other spindle mounting plates are available on request.
