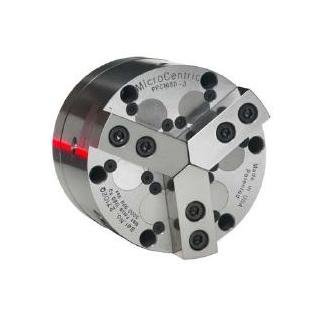

The PPC165D Precision Power Chuck Models provide exceptional precision and durability for machining operations. With a chuck diameter of 6.45" (165mm), these models feature QC precision change jaw system, offering both 3 jaw and 2 jaw models. The hardened chuck body, actuators, and master jaws ensure long-term accuracy and performance, with a repeating accuracy of .0001" (0.0025mm) TIR. Designed with standard and long stroke options, a 1.375" (35mm) through hole, and precision fit master jaws to minimize jaw lift, these chucks are ideal for industrial applications requiring high precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.510 in | 13.0 mm
Specifications Chuck Weight
25.2 lb | 11.4 kg
Specifications Jaw Stroke
.270 in | 6.9 mm
Specifications Max Clamp Force
4,515 lbs | 20.1 kN
Specifications Max Draw Tube Force
2,425 lbs | 10.8 kN
Specifications Max Speed
4,000 rpm
Specifications Min Draw Tube Force
350 lbf | 1.5 kN
Specifications Moment Of Inertia
.99 lb-ft² | 0.04 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
1.375 in | 35 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-5, 140mm flat nose as well as other spindle mounting plates are available on request.
