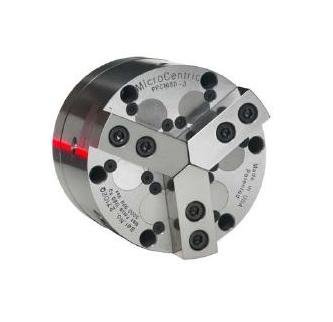

PPC165D Precision Power Chuck Models - 3 Jaw & 2 Jaw Variation
PPC165D Precision Power Chuck Models - 3 Jaw & 2 Jaw Variation
SKU:PRE-ad5b4c
Enhance precision machining with PPC165D chucks - durable, accurate, and reliable. Elevate your machining projects!
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
PPC165D Precision Power Chuck Models - 3 Jaw & 2 Jaw Variation
$1,799.99
Quantity: 1
Claim Your Seller Account
PPC165D Precision Power Chuck Models - 3 Jaw & 2 Jaw Variation
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PPC165D Precision Power Chuck Models offer unparalleled precision and durability for industrial machining needs. With a 6.45" chuck diameter, QC precision change jaw system, and options for standard or long stroke models, these chucks provide exceptional accuracy with a .0001" TIR. Featuring hardened components for long-term performance, including hardened chuck body, actuators, and master jaws, these models ensure minimal jaw lift and precise machining. Whether for high-speed or heavy-duty applications, the PPC165D models deliver reliable clamping force and repeating accuracy to enhance machining operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.510 in | 13.0 mm
Specifications Chuck Weight
25.2 lb | 11.4 kg
Specifications Item No
14 506 061
Specifications Jaw Stroke
.180 in | 4.6 mm
Specifications Max Clamp Force
5,330 lbs | 23.7 kN
Specifications Max Draw Tube Force
2,425 lbs | 10.8 kN
Specifications Max Speed
5,000 rpm
Specifications Min Draw Tube Force
350 lbf | 1.5 kN
Specifications Moment Of Inertia
.99 lb-ft² | 0.04 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
1.375 in | 35 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0

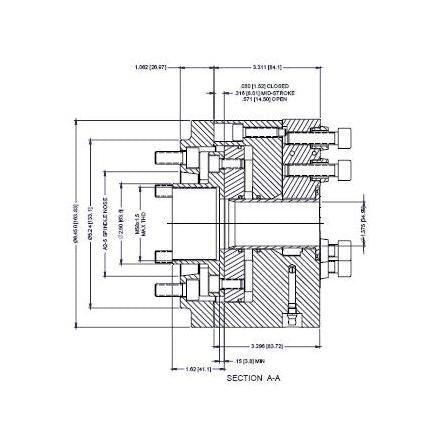

Threaded draw tube adapters are furnished on request A2-5, 140mm flat nose as well as other spindle mounting plates are available on request.
