PPC165D Precision Power Chuck Set
PPC165D Precision Power Chuck Set
SKU:PRE-eae309
Achieve precision with the PPC165D Power Chuck Set. Perfect for accurate and efficient machining tasks.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
PPC165D Precision Power Chuck Set
$1,299.99
Quantity: 1
Claim Your Seller Account
PPC165D Precision Power Chuck Set
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

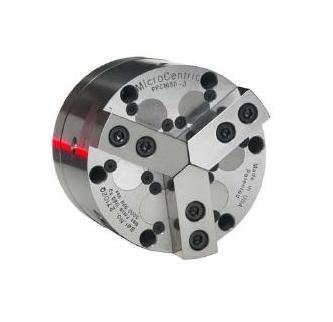

The PPC165D Precision Power Chuck Set offers unparalleled precision and performance for machining tasks. With a 6.45" chuck diameter, 3 jaw and 2 jaw models, and a QC precision change jaw system, this set ensures accuracy and efficiency. It features both standard and long stroke models, a 1.375" through hole, and precision fit master jaws for minimal jaw lift. The hardened chuck body, actuators, and master jaws guarantee long-term accuracy and performance, with a repeating accuracy of .0001" (0.0025mm) TIR. Suitable for a wide range of applications requiring high precision.
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.510 in | 13.0 mm
Specifications Chuck Weight
25.2 lb | 11.4 kg
Specifications Jaw Stroke
.270 in | 6.9 mm
Specifications Max Clamp Force
6,840 lbs | 30.4 kN
Specifications Max Draw Tube Force
3,640 lbs | 16.2 kN
Specifications Max Speed
4,000 rpm
Specifications Min Draw Tube Force
350 lbf | 1.5 kN
Specifications Moment Of Inertia
.99 lb-ft² | 0.04 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
1.375 in | 35 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-5, 140mm flat nose as well as other spindle mounting plates are available on request.
