PPC210D Precision Power Chuck Models - 3 Jaw & 2 Jaw
PPC210D Precision Power Chuck Models - 3 Jaw & 2 Jaw
SKU:PRE-d05b60
Achieve unrivaled precision with PPC210D Precision Power Chuck Models - 3 Jaw & 2 Jaw. Superior accuracy and durability for your machining needs.
Regular price
$2,875.99
Regular price
Sale price
$2,875.99
Unit price
per
Initiate Order
PPC210D Precision Power Chuck Models - 3 Jaw & 2 Jaw
$2,875.99
Quantity: 1
Claim Your Seller Account
PPC210D Precision Power Chuck Models - 3 Jaw & 2 Jaw
$2,875.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

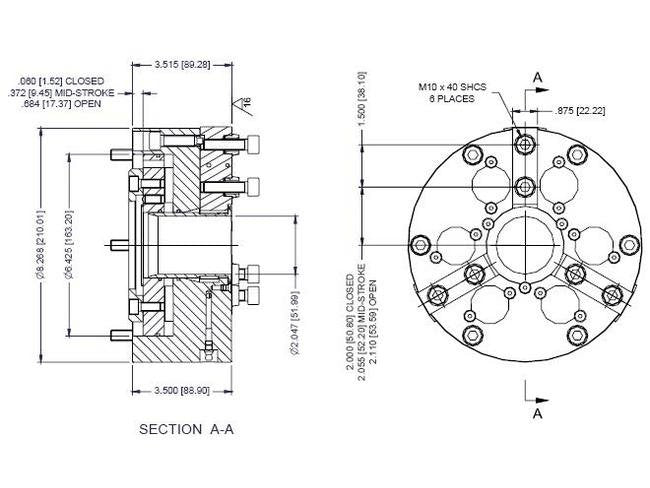

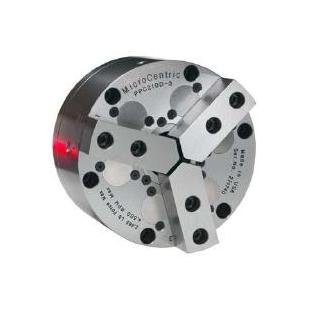

The PPC210D Precision Power Chuck Models offer precise performance with an 8.25'' chuck diameter. Available in 3 jaw and 2 jaw models, featuring a QC precision change jaw system, standard and long stroke options. With a 2.050'' through hole and hardened components for long-term accuracy, these chucks ensure repeating accuracy of .0001'' (0.0025mm) TIR. The hardened chuck body, actuators, and master jaws minimize jaw lift, providing reliable and consistent results in machining operations.
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.630 in | 16.0 mm
Specifications Chuck Weight
44.3 lb | 20.1 kg
Specifications Item No
14 508 034
Specifications Jaw Stroke
.220 in | 5.6 mm
Specifications Max Clamp Force
13,430 lbs | 59.7 kN
Specifications Max Draw Tube Force
5,840 lbs | 26.0 kN
Specifications Max Speed
4,500 rpm
Specifications Min Draw Tube Force
500 lbf | 2.2 kN
Specifications Moment Of Inertia
2.87 lb-ft² | 0.12 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
2.050 in | 52 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.

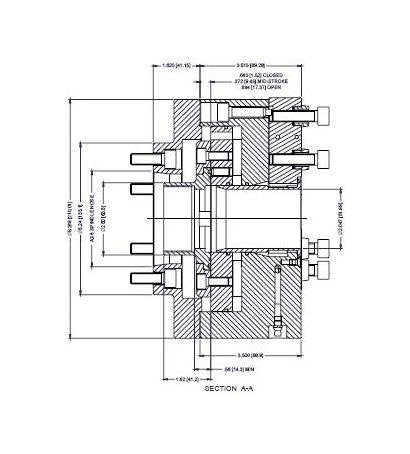

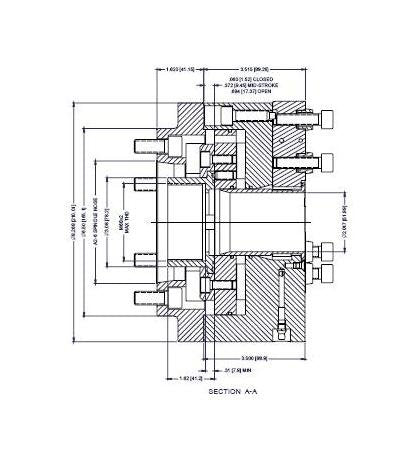

Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-5 as well as other spindle mounting plates are available on request.
