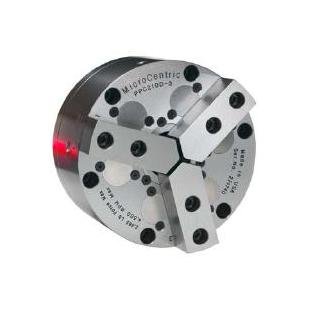

The PPC210D Precision Power Chuck Models are designed for precise machining operations, featuring an 8.25" chuck diameter, 3 jaw and 2 jaw models, and a QC precision change jaw system. With a hardened chuck body, actuators, and master jaws, these chucks ensure long-term accuracy and performance. The chuck also boasts a .0001" (0.0025mm) TIR repeating accuracy, making it ideal for high-precision applications. Equipped with standard and long stroke models, a 2.050" through hole, and precision fit master jaws to minimize jaw lift, the PPC210D is a reliable choice for institutional and government buyers seeking top-notch quality.
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.630 in | 16.0 mm
Specifications Chuck Weight
44.3 lb | 20.1 kg
Specifications Jaw Stroke
.334 in | 8.5 mm
Specifications Max Clamp Force
10,510 lbs | 46.8 kN
Specifications Max Draw Tube Force
5,840 lbs | 26.0 kN
Specifications Max Speed
3,500 rpm
Specifications Min Draw Tube Force
500 lbf | 2.2 kN
Specifications Moment Of Inertia
2.87 lb-ft² | 0.12 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
2.050 in | 52 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.

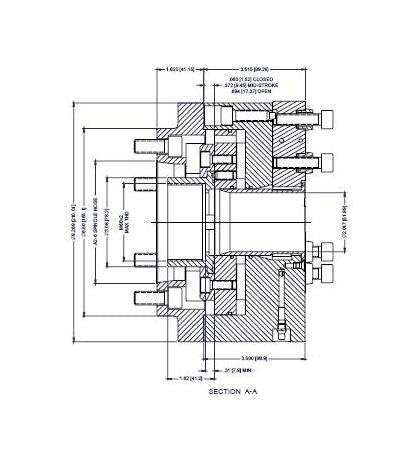

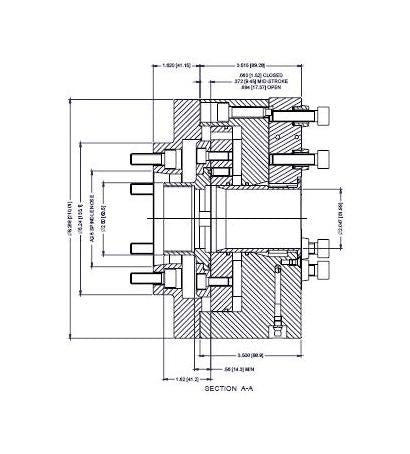

Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-5 as well as other spindle mounting plates are available on request.
