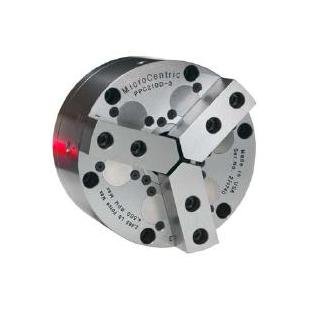

The PPC210D Precision Power Chuck Models feature an 8.25” (210mm) chuck diameter available in 3 jaw and 2 jaw models. With a Quick Change (QC) precision jaw system, these chucks come in standard and long stroke models. They boast a 2.050” (52mm) through hole capacity and precision fit master jaws to minimize jaw lift. Built with hardened chuck bodies, actuators, and master jaws, this ensures long-term accuracy and performance. Achieve exceptional repeating accuracy of .0001” (0.0025mm) TIR, making these chucks ideal for precision machining applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.630 in | 16.0 mm
Specifications Chuck Weight
44.3 lb | 20.1 kg
Specifications Item No
14 508 042
Specifications Jaw Stroke
.220 in | 5.6 mm
Specifications Max Clamp Force
8,950 lbs | 39.8 kN
Specifications Max Draw Tube Force
3,890 lbs | 17.3 kN
Specifications Max Speed
4,500 rpm
Specifications Min Draw Tube Force
500 lbf | 2.2 kN
Specifications Moment Of Inertia
2.87 lb-ft² | 0.12 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
2.050 in | 52 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-5 as well as other spindle mounting plates are available on request.
