PPC210D Precision Power Chuck Models with QC Precision Change Jaw System
PPC210D Precision Power Chuck Models with QC Precision Change Jaw System
SKU:PRE-bcd613
Enhance machining precision with our PPC210D Precision Power Chuck Models featuring precision fit master jaws, hardened body, and .0001â repeating accuracy. Maximize efficiency with 3,500 rpm speed and 7,000 lbs clamp force.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
PPC210D Precision Power Chuck Models with QC Precision Change Jaw System
$2,499.99
Quantity: 1
Claim Your Seller Account
PPC210D Precision Power Chuck Models with QC Precision Change Jaw System
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

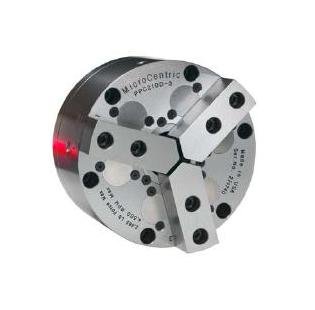

Meet your machining needs with the PPC210D Precision Power Chuck Models featuring an 8.25â chuck diameter, available in 3-jaw and 2-jaw models. With a precision fit master jaws design, hardened chuck body, actuators, and master jaws, this chuck ensures long-term accuracy and performance. Enjoy a through hole of 2.050â, standard and long stroke options, and a repeating accuracy of .0001â (0.0025mm) TIR. Benefit from its Max. Speed of 3,500 rpm and Max. Clamp Force of 7,000 lbs for efficient operations.
Product Specifications
Specifications Accuracy
.0001 in | 0.0025 mm
Specifications Actuator Stroke
.630 in | 16.0 mm
Specifications Chuck Weight
44.3 lb | 20.1 kg
Specifications Jaw Stroke
.334 in | 8.5 mm
Specifications Max Clamp Force
7,000 lbs | 31.1 kN
Specifications Max Draw Tube Force
3,890 lbs | 17.3 kN
Specifications Max Speed
3,500 rpm
Specifications Min Draw Tube Force
500 lbf | 2.2 kN
Specifications Moment Of Inertia
2.87 lb-ft² | 0.12 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
2.050 in | 52 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.

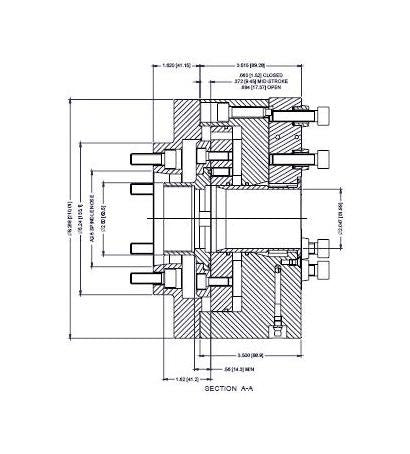

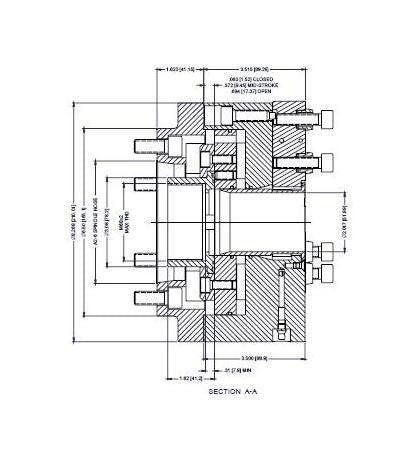

Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-5 as well as other spindle mounting plates are available on request.
