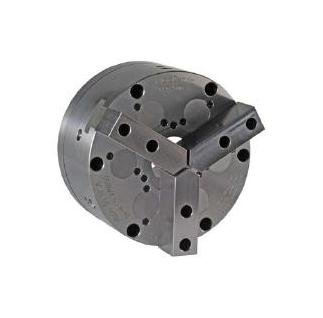

PPC250D Precision Power Chuck
PPC250D Precision Power Chuck
SKU:PRE-894d0f
High-precision PPC250D Power Chuck for ultimate machining accuracy and performance.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
PPC250D Precision Power Chuck
$2,899.99
Quantity: 1
Claim Your Seller Account
PPC250D Precision Power Chuck
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

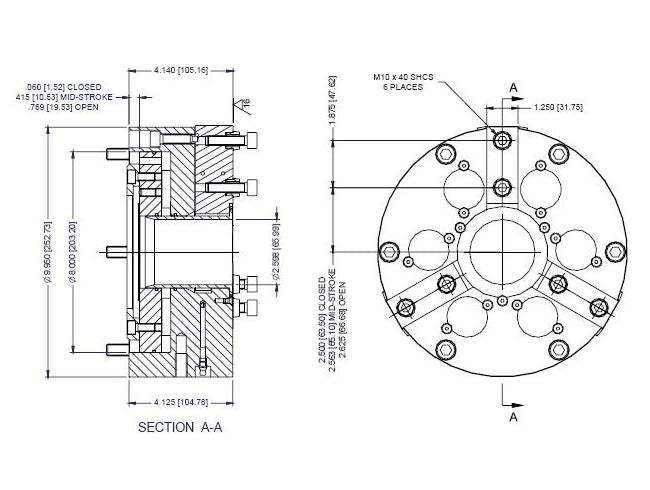

The PPC250D Precision Power Chuck Models are crafted for precision and reliability, featuring a 10.00-inch chuck diameter with both 3 jaw and 2 jaw models. With a QC precision change jaw system and options for standard and long stroke models, these chucks offer versatility to meet varied needs. Engineered with hardened components including chuck body, actuators, and master jaws, these chucks ensure long-term accuracy and performance. Achieve superior repeating accuracy of .0002 inches (0.005mm) TIR, making them a trusted choice for demanding machining applications.
Product Specifications
Specifications Accuracy
.0002 in | 0.005 mm
Specifications Actuator Stroke
.710 in | 18.0 mm
Specifications Chuck Weight
74.2 lb | 33.7 kg
Specifications Jaw Stroke
.380 in | 9.6 mm
Specifications Max Clamp Force
12,780 lbs | 56.8 kN
Specifications Max Draw Tube Force
31.6 lbs | 7,100 kN
Specifications Max Speed
2,500 rpm
Specifications Min Draw Tube Force
600 lbf | 2.7 kN
Specifications Moment Of Inertia
7.03 lb-ft² | 0.30 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
2.600 in | 66 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0

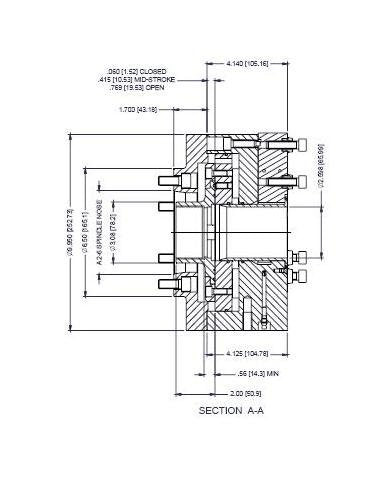

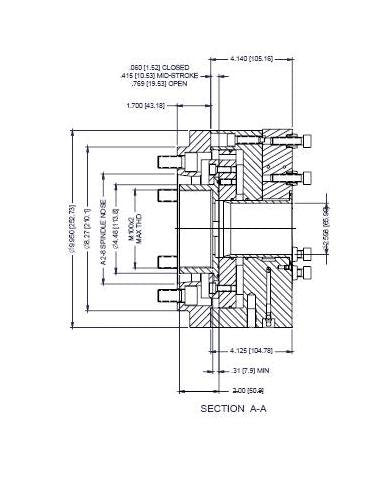

Threaded draw tube adapters are furnished on request A2-6, A2-8 as well as other spindle mounting plates are available on request.
