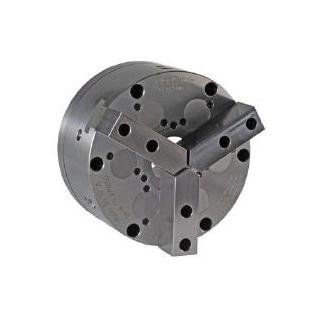

The PPC250D Precision Power Chuck Models deliver exceptional performance with a 10.00" chuck diameter, available in 3 jaw and 2 jaw models. Featuring a QC precision change jaw system, these chucks come in standard and long stroke models. With a 2.60" through hole and precision fit master jaws to minimize jaw lift, these chucks ensure maximum accuracy. The hardened chuck body, actuators, and master jaws guarantee long-term precision. Achieve repeating accuracy of .0002" (0.005mm) TIR, making them ideal for demanding machining applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0002 in | 0.005 mm
Specifications Actuator Stroke
.710 in | 18.0 mm
Specifications Chuck Weight
74.2 lb | 33.7 kg
Specifications Item No
14 510 037
Specifications Jaw Stroke
.250 in | 6.3 mm
Specifications Max Clamp Force
10,875 lbs | 48.4 kN
Specifications Max Draw Tube Force
21.0 lbs | 4,730 kN
Specifications Max Speed
3,500 rpm
Specifications Min Draw Tube Force
600 lbf | 2.7 kN
Specifications Moment Of Inertia
7.03 lb-ft² | 0.30 kg-m²
Specifications No Of Jaws
2
Specifications Through Hole
2.600 in | 66 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.

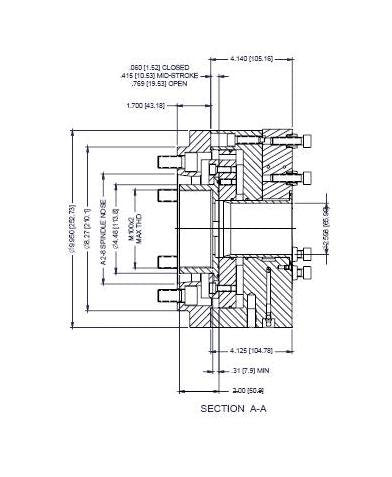

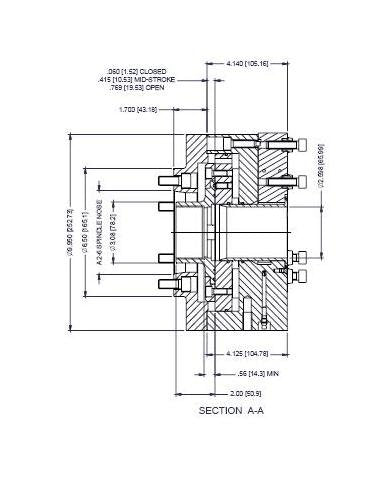

Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-8 as well as other spindle mounting plates are available on request.
