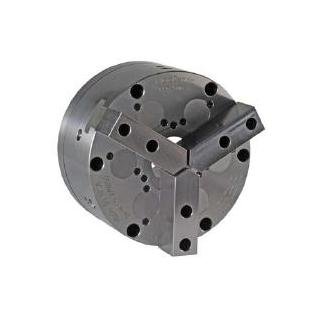

The PPC250D Precision Power Chuck Models offer exceptional precision and performance for a wide range of machining applications. With a chuck diameter of 10.00 inches (250mm) and available in both 3 jaw and 2 jaw models, these chucks feature a quick-change (QC) precision jaw system for efficient jaw swapping. The chuck is designed with standard and long stroke models, a 2.60-inch (66mm) through hole, and precision fit master jaws to minimize jaw lift. Built with a hardened chuck body, actuators, and master jaws, these chucks ensure long-term accuracy and reliable performance. With a repeating accuracy of .0002 inches (0.005mm) TIR, these chucks meet the demanding requirements of precision machining.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Accuracy
.0002 in | 0.005 mm
Specifications Actuator Stroke
.710 in | 18.0 mm
Specifications Chuck Weight
74.2 lb | 33.7 kg
Specifications Item No
14 510 036
Specifications Jaw Stroke
.250 in | 6.3 mm
Specifications Max Clamp Force
16,330 lbs | 72.6 kN
Specifications Max Draw Tube Force
31.6 lbs | 7,100 kN
Specifications Max Speed
3,500 rpm
Specifications Min Draw Tube Force
600 lbf | 2.7 kN
Specifications Moment Of Inertia
7.03 lb-ft² | 0.30 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
2.600 in | 66 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.

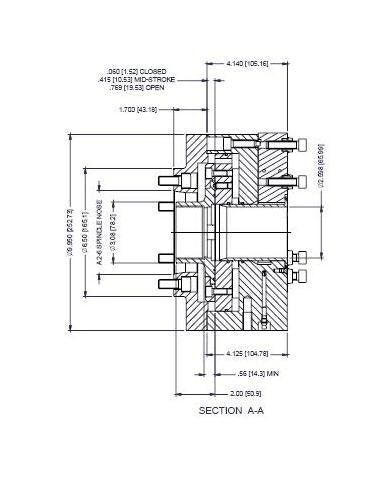

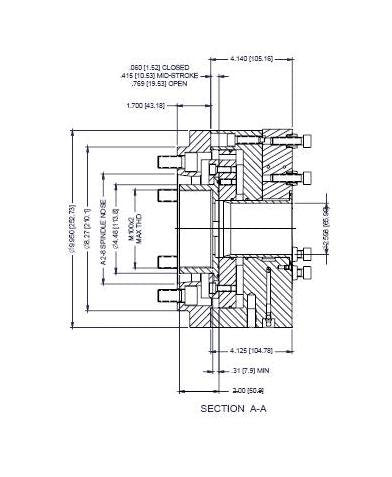

Threaded Draw Tube Adapters Spindle Mounting Plates 0
Threaded draw tube adapters are furnished on request A2-6, A2-8 as well as other spindle mounting plates are available on request.
