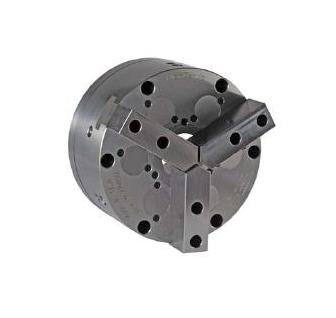

PPC300D106 Precision Power Chuck Models - 12 inch Chuck Diameter
PPC300D106 Precision Power Chuck Models - 12 inch Chuck Diameter
SKU:PRE-ec3656
Experience precision and durability with our 12-inch PPC300D106 Precision Power Chuck Models for industrial machining needs.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
PPC300D106 Precision Power Chuck Models - 12 inch Chuck Diameter
$2,599.99
Quantity: 1
Claim Your Seller Account
PPC300D106 Precision Power Chuck Models - 12 inch Chuck Diameter
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

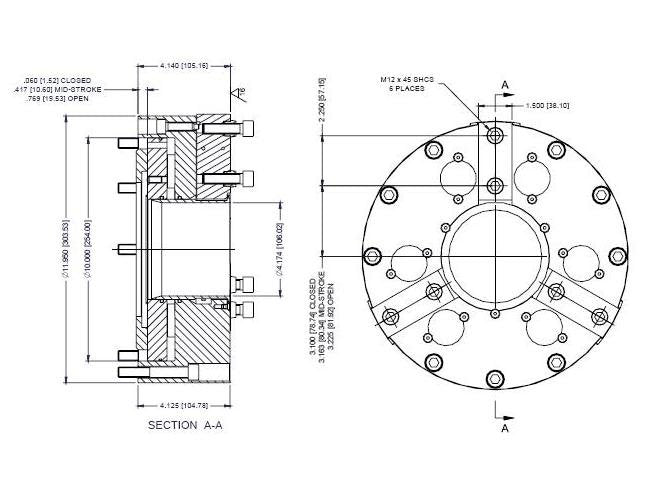

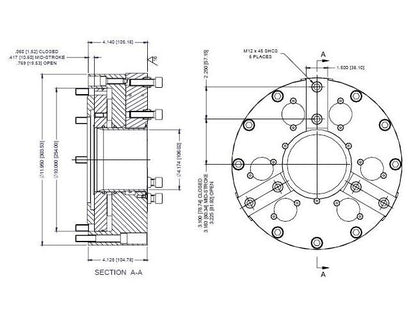

The PPC300D106 Precision Power Chuck Models offer exceptional precision and durability for industrial machining needs. With a 12.00-inch chuck diameter, available in both 3 jaw and 2 jaw models, these chucks feature a QC precision change jaw system for quick adjustments. The models come in standard and long stroke variants, with a 4.17-inch through hole and precision fit master jaws that minimize jaw lift. Built with hardened chuck body, actuators, and master jaws, these chucks ensure long-term accuracy and performance with a repeating accuracy of .0002 inches (0.005mm) TIR.
Product Specifications
Specifications Accuracy
.0002 in | 0.005 mm
Specifications Actuator Stroke
.710 in | 18.0 mm
Specifications Chuck Weight
100.8 lb | 45.7 kg
Specifications Item No
14 512 005
Specifications Jaw Stroke
.250 in | 6.3 mm
Specifications Max Clamp Force
21,580 lbs | 95.9 kN
Specifications Max Draw Tube Force
8,270 lbs | 36.8 kN
Specifications Max Speed
2,800 rpm
Specifications Min Draw Tube Force
750 lbf | 3.3 kN
Specifications Moment Of Inertia
14.5 lb-ft² | 0.61 kg-m²
Specifications No Of Jaws
3
Specifications Through Hole
4.170 in | 106 mm
Standard Equipment 0
Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.
Threaded Draw Tube Adapters Spindle Mounting Plates 0

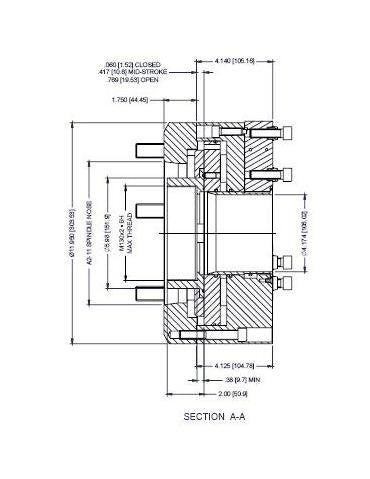

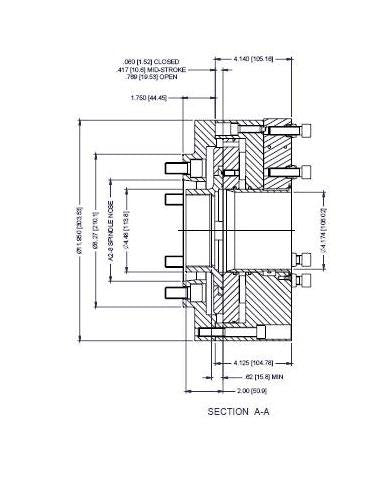

Threaded draw tube adapters are furnished on request A2-8, A2-11 as well as other spindle mounting plates are available on request.
