PPC300D106 Precision Power Chuck Models - Dual & Triple Jaw Options

Name: PPC300D106 Precision Power Chuck Models - Dual & Triple Jaw Options
Brand: MicroCentric Corp.
SKU: PRE-98960b
Price: 2599.99 USD
Availability: OutOfStock

SKU:PRE-98960b

Upgrade to unparalleled precision with our PPC300D106 Precision Power Chuck Models - 12.00” diameter, hardened components, and .0002" TIR for ultimate accuracy.

$2,599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

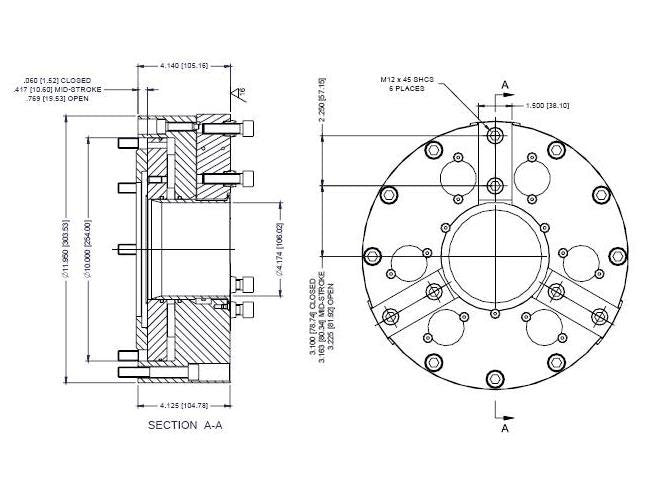

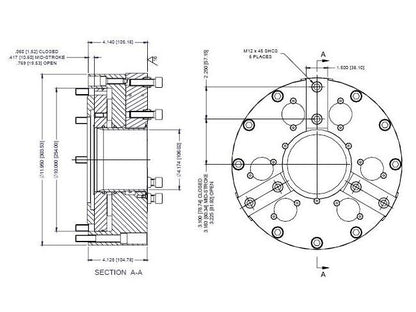

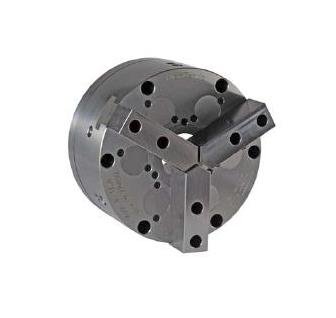

Experience precision like never before with our PPC300D106 Precision Power Chuck Models. Available in 3 jaw and 2 jaw models with QC precision change jaw system, these chucks feature a 12.00” chuck diameter and a 4.17” through hole. With hardened components for long-term accuracy, high repeatability at .0002" TIR, and a range of specifications including Max. Speed of 2,000 rpm, these chucks ensure top-notch performance in various machining applications.

Product Specifications

Specifications Accuracy

.0002 in | 0.005 mm

Specifications Actuator Stroke

.710 in | 18.0 mm

Specifications Chuck Weight

100.8 lb | 45.7 kg

Specifications Jaw Stroke

.380 in | 9.6 mm

Specifications Max Clamp Force

11,110 lbs | 49.4 kN

Specifications Max Draw Tube Force

5,510 lbs | 24.5 kN

Specifications Max Speed

2,000 rpm

Specifications Min Draw Tube Force

750 lbf | 3.3 kN

Specifications Moment Of Inertia

14.5 lb-ftÂ² | 0.61 kg-mÂ²

Specifications No Of Jaws

Specifications Through Hole

4.170 in | 106 mm

Standard Equipment 0

Blank draw tube adapter Blank top jaws, chuck lubricant, and grease guns are sold separately.

Threaded Draw Tube Adapters Spindle Mounting Plates 0

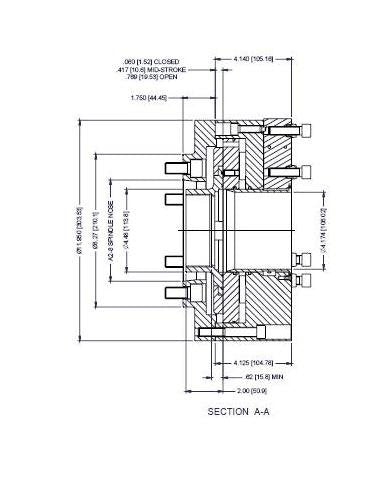

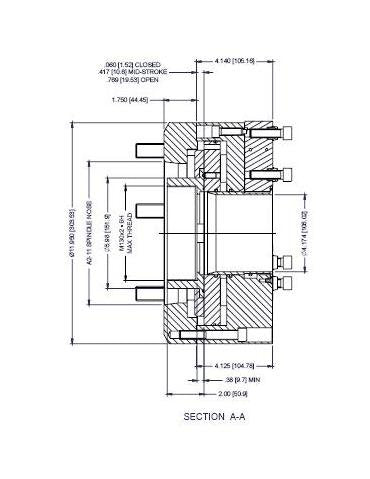

Threaded draw tube adapters are furnished on request A2-8, A2-11 as well as other spindle mounting plates are available on request.
