PR-1 Series Pressure Regulator for Gas and Liquid Service

Name: PR-1 Series Pressure Regulator for Gas and Liquid Service
Brand: Circle Valve Technologies Inc.
SKU: GOR-60a805
Price: 239.99 USD
Availability: OutOfStock

SKU:GOR-60a805

Versatile PR-1 Series Pressure Regulator - Ideal for gas and liquid service, offering precise pressure control for instrumentation and semiconductor applications. Inlet pressures up to 6000 psig with operating temperatures from -40º F to +500º F.

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

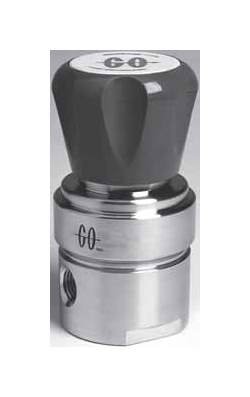

The PR-1 Series Pressure Regulator is a versatile solution crafted for precision pressure control in instrumentation sample systems and semiconductor processing gases. Built with 316L stainless steel body material, it ensures durability and ease of maintenance with welded connections. Featuring a range of seat materials, orifice sizes, and pressure control ranges, this regulator accommodates diverse applications with inlet pressures up to 6000 psig. With operating temperatures ranging from -40º F to +500º F, stainless diaphragms, and electropolished body surfaces, the PR-1 Series excels in maintaining optimal pressure levels. Ideal for low to moderate flows, this regulator ensures bubble-tight shutoff under various conditions, making it a reliable choice for critical processes.

Product Specifications

Options 0

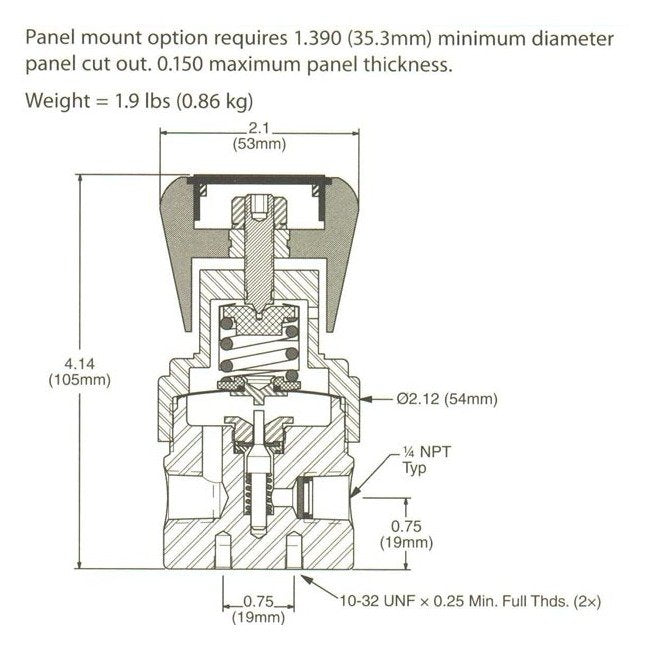

Wetted materials of construction: MonelÂ®, HastelloyÂ®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Tamper-proof, stainless steel

Specifications Diaphragm Backing Material

Stainless Steel

Specifications Diaphragm Facing Material

TeflonÂ®

Specifications Diaphragm Type

Standard diaphragm

Specifications Flow Coefficient Cv

0.50

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 260 ÂºC | -40 to 500 ÂºF

Specifications Outlet Range

0 to 750 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT standard (1/4" FNPT gauge ports)

Specifications Seat Material

Polyimide (metal knob)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

1.9 lbs
