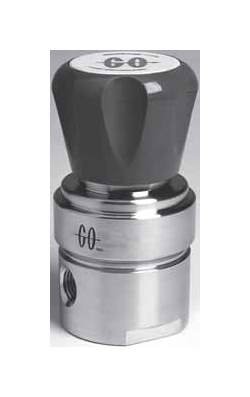

PR-1 Series Pressure Regulator for Gas/Liquid Service
PR-1 Series Pressure Regulator for Gas/Liquid Service
SKU:GOR-77cf0d
Versatile PR-1 Series Pressure Regulator for precise gas/liquid pressure control in instrumentation and semiconductor applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
PR-1 Series Pressure Regulator for Gas/Liquid Service
$189.99
Quantity: 1
Claim Your Seller Account
PR-1 Series Pressure Regulator for Gas/Liquid Service
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PR-1 Series Pressure Regulator is a versatile solution designed for instrumentation sample systems and semiconductor processing gases, offering precise pressure control for low to moderate flows. With a 316L stainless steel body, stainless steel caps, and electropolished diaphragm cavity surface finish, it ensures durability, corrosion resistance, and easy cleaning. Featuring multiple seat materials, adjustable outlet pressure ranges, and inlet pressures up to 6000 psig, this regulator provides a wide spectrum of capabilities. Ideal for gas or liquid service applications with operating temperatures ranging from -40 to +500°F, it includes bubble-tight shutoff, 20 micron filters, and Cv flow coefficients for efficient performance.
Product Specifications
Options 0
Wetted materials of construction: Monel®, Hastelloy®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly
Standard, stainless steel
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Teflon®
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.50
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 66 ºC | -40 to 150 ºF
Specifications Outlet Range
0 to 100 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT standard (1/4" FNPT gauge ports)
Specifications Seat Material
Tefzel®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard

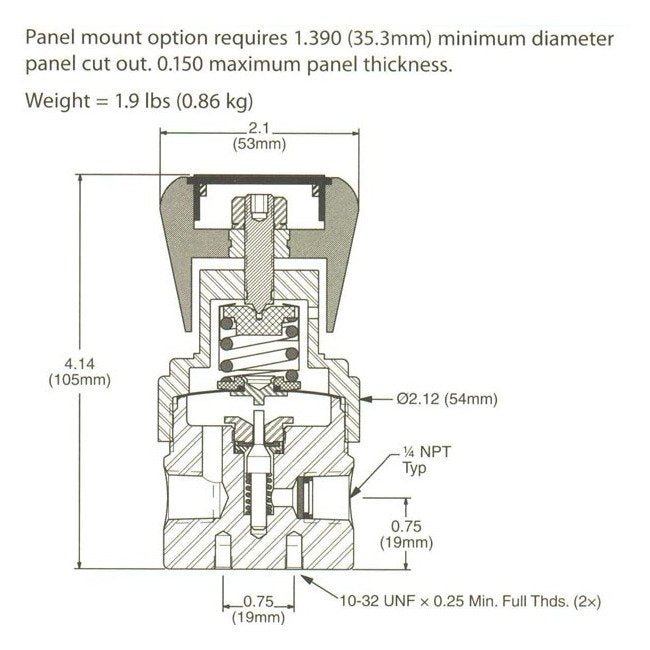

Specifications Weight
1.9 lbs
