PR-1 Series Pressure Regulator: Precise control for gas/liquid services, adjustable up to 100 psig, with durable materials and safety features.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

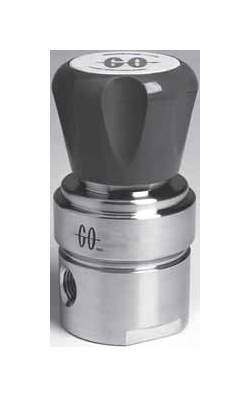

The PR-1 Series Pressure Regulator is a versatile solution for precision pressure control in instrumentation sample systems and semiconductor gas processing. With a 316L stainless steel body, electropolished for cleanliness, and Teflon diaphragms for durability, it offers a wide range of adjustable outlet pressure settings up to 100 psig and inlet pressures up to 6000 psig. Ideal for low to moderate flows, it ensures bubble-tight shutoff for enhanced safety and reliability. Options include various wetted materials, relief valves, and panel mounting capabilities for customized use.

Product Specifications

Options 0

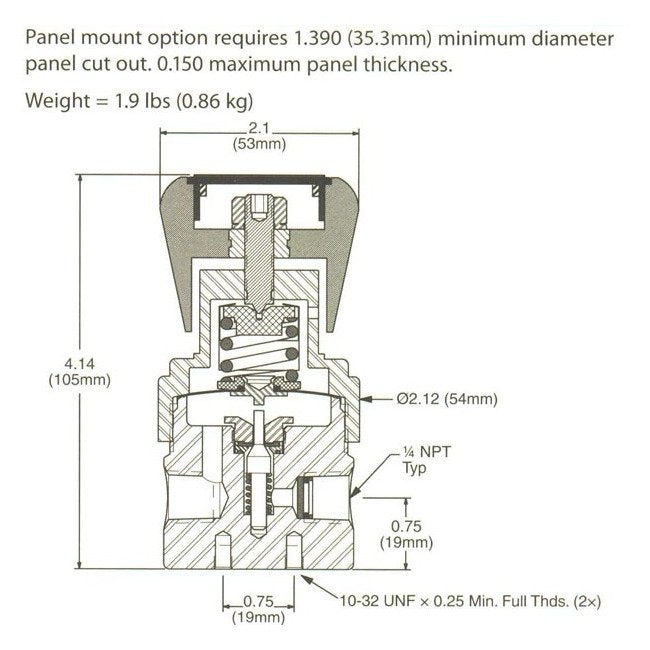

Wetted materials of construction: MonelÂ®, HastelloyÂ®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, stainless steel

Specifications Diaphragm Backing Material

Stainless Steel

Specifications Diaphragm Facing Material

TeflonÂ®

Specifications Diaphragm Type

Standard diaphragm

Specifications Flow Coefficient Cv

0.20

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 80 ÂºC | -40 to 175 ÂºF

Specifications Outlet Range

0 to 100 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT standard (1/4" FNPT gauge ports)

Specifications Seat Material

PEEKÂ® low temperature service (plastic knob standard)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

1.9 lbs
