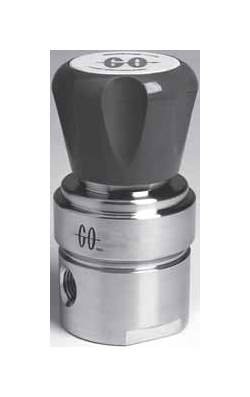

PR-1 Series Pressure Regulator - Instrumentation Gas/Liquid Control
PR-1 Series Pressure Regulator - Instrumentation Gas/Liquid Control
SKU:GOR-a8a3db
Versatile PR-1 Series Pressure Regulator for precise gas/liquid control, featuring 316L stainless steel body and adjustable pressure ranges up to 250 psig. Ideal for instrumentation sample systems and semiconductor processing gases.
Regular price
$230.00
Regular price
Sale price
$230.00
Unit price
per
Initiate Order
PR-1 Series Pressure Regulator - Instrumentation Gas/Liquid Control
$230.00
Quantity: 1
Claim Your Seller Account
PR-1 Series Pressure Regulator - Instrumentation Gas/Liquid Control
$230.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PR-1 Series Pressure Regulator is a versatile solution meticulously designed to meet the stringent demands of instrumentation sample systems and semiconductor processing gases. Crafted with 316L stainless steel body material for robust welded connections, this regulator ensures precise pressure control at low to moderate flows in gas or liquid services. Its stainless steel caps and adjusting screws resist atmospheric corrosion, maintaining both functionality and aesthetic appeal. With impeccable internal surface finish and electropolishing for enhanced cleanliness, five seat materials, variable orifice sizes, and seven pressure control ranges with stainless diaphragms offer exceptional control capabilities. Operating at pressures up to 6000 psig and temperatures up to 500º F, this regulator guarantees reliability and performance across a broad spectrum of applications.
Product Specifications
Options 0
Wetted materials of construction: Monel®, Hastelloy®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel

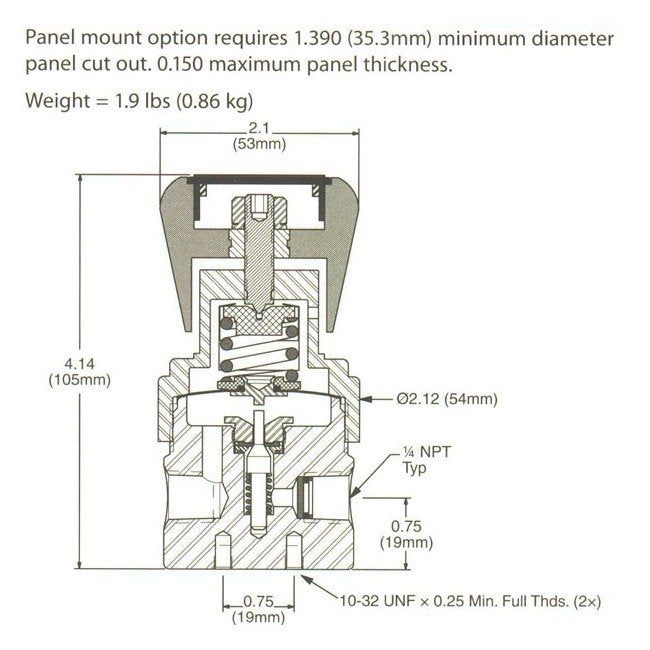

Specifications Cap Assembly
Panel mount, stainless steel
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Teflon®
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.06
Specifications Max Operating Pressure
6000 psig
Specifications Operating Temperature
-40 to 80 ºC | -40 to 175 ºF
Specifications Outlet Range
0 to 250 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT standard (1/4" FNPT gauge ports)
Specifications Seat Material
PCTFE (formerly Kel-F® 81)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
