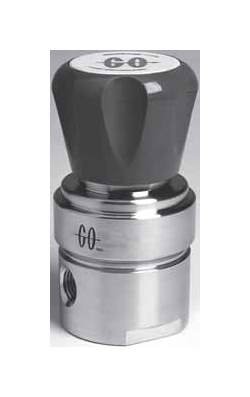

The PR-1 Series Pressure Regulator is a versatile solution designed for instrumentation sample systems and semiconductor processing gases. With a 316L stainless steel body for welded connections, this regulator ensures durability and corrosion resistance. Its stainless steel caps and adjusting screws maintain appearance and prevent atmospheric corrosion. The electropolished body surface finish enhances cleanliness and minimizes particle contamination. Offering five seat materials, three orifice sizes, and seven pressure control ranges with stainless diaphragms, it enables precise pressure management at up to 6000 psig inlet pressure and operating temperatures up to 500°F. Ideal for gas or liquid service applications, this regulator ensures reliable control and robust performance.
Product Specifications
Options 0
Wetted materials of construction: Monel®, Hastelloy®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel

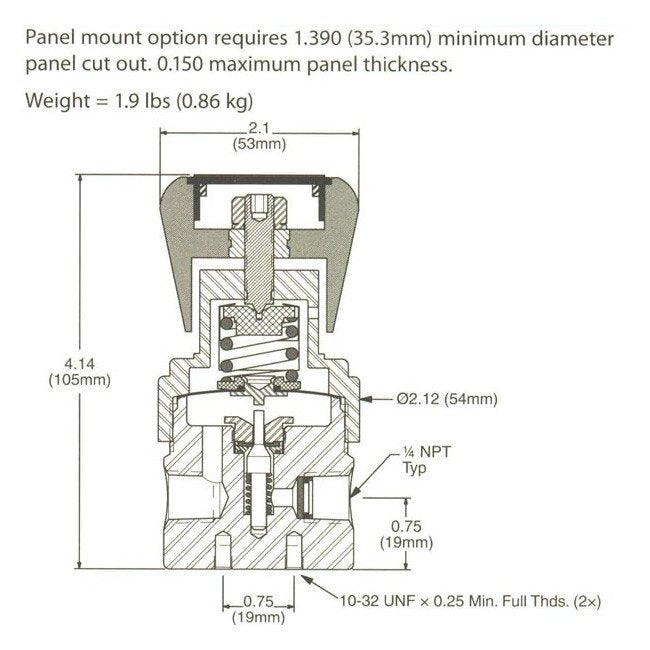

Specifications Cap Assembly
Panel mount, stainless steel
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Teflon®
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.025
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 80 ºC | -40 to 175 ºF
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT standard (1/4" FNPT gauge ports)
Specifications Seat Material
CF Teflon®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
