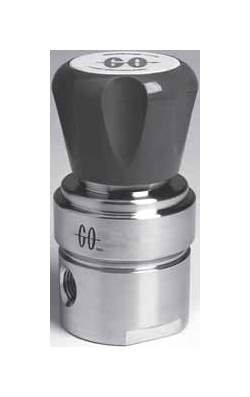

PR-1 Series Pressure Regulator - Stainless Steel Body

Name: PR-1 Series Pressure Regulator - Stainless Steel Body
Brand: Circle Valve Technologies Inc.
SKU: GOR-680d5e
Price: 289.99 USD
Availability: OutOfStock

SKU:GOR-680d5e

Versatile PR-1 Series Pressure Regulator for precise pressure control in instrumentation and semiconductor applications.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-1 Series Pressure Regulator is a versatile solution suitable for instrumentation sample systems, semiconductor processing gases, and more. Constructed with 316L stainless steel body material for durability and welded connections, this regulator features stainless steel caps and adjusting screws to prevent atmospheric corrosion. With enhanced internal body surface finish and electropolishing, it offers easy cleaning and reduced particle contamination. Offering a wide range of customization with different seat materials, orifice sizes, and pressure control ranges, this regulator can handle inlet pressures up to 6000 psig and temperatures up to 500°F. Suitable for both gas and liquid services, it ensures precise pressure control for various applications.

Product Specifications

Options 0

Wetted materials of construction: MonelÂ®, HastelloyÂ®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

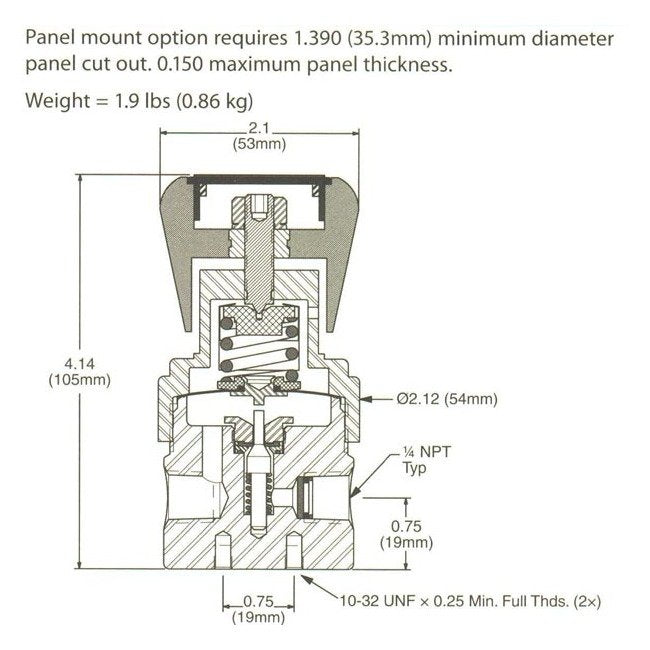

Panel mount, stainless steel

Specifications Diaphragm Backing Material

Stainless Steel

Specifications Diaphragm Facing Material

TeflonÂ®

Specifications Diaphragm Type

Standard diaphragm

Specifications Flow Coefficient Cv

0.20

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 260 ÂºC | -40 to 500 ÂºF

Specifications Outlet Range

0 to 750 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT standard (1/4" FNPT gauge ports)

Specifications Seat Material

Polyimide (metal knob)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

1.9 lbs
