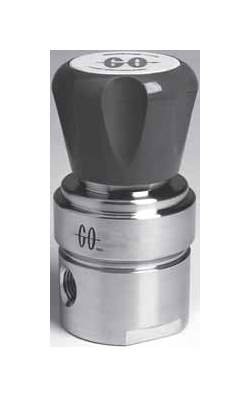

PR-1 Series Pressure Regulator with Stainless Steel Body

Name: PR-1 Series Pressure Regulator with Stainless Steel Body
Brand: Circle Valve Technologies Inc.
SKU: GOR-fa73af
Price: 229.99 USD
Availability: OutOfStock

SKU:GOR-fa73af

Versatile PR-1 Series Pressure Regulator for precise control of gas or liquid service applications with 316L stainless steel body, Teflon diaphragm, and adjustable outlet pressure up to 500 psig.

$229.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-1 Series Pressure Regulator is a versatile solution designed for instrumentation sample systems and semiconductor processing gases. Constructed with 316L stainless steel body for welded connections, it features Teflon diaphragm facing and stainless steel caps for enhanced durability and corrosion resistance. With adjustable outlet pressure ranges from 0 to 500 psig and operating temperatures up to 500º F, this regulator offers precise control for gas or liquid service applications. With multiple seat materials, orifice sizes, and pressure control ranges, it meets a wide spectrum of pressure control needs, making it ideal for low to moderate flow conditions.

Product Specifications

Options 0

Wetted materials of construction: MonelÂ®, HastelloyÂ®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Tamper-proof, stainless steel

Specifications Diaphragm Backing Material

Stainless Steel

Specifications Diaphragm Facing Material

TeflonÂ®

Specifications Diaphragm Type

Standard diaphragm

Specifications Flow Coefficient Cv

0.025

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 260 ÂºC | -40 to 500 ÂºF

Specifications Outlet Range

0 to 500 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT standard (1/4" FNPT gauge ports)

Specifications Seat Material

Polyimide (metal knob)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

1.9 lbs
