Versatile PR-1 Series Pressure Regulators for precise pressure control in instrumentation and semiconductor applications. Inlet pressures up to 6000 psig. Operating temps up to 500°F.

$329.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

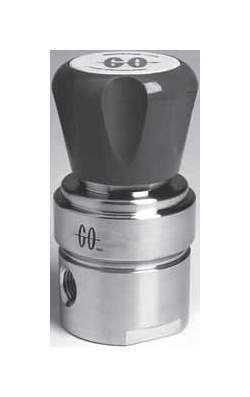

The PR-1 Series Pressure Regulators are meticulously engineered to cater to a diverse array of applications, from instrumentation sample systems to semiconductor processing gases. Crafted with 316L stainless steel and innovative features like electropolishing for enhanced cleaning and reduced particle contamination, these regulators offer exceptional performance at low to moderate flows in gas or liquid services. With options for different seat materials, multiple orifice sizes, and varying pressure control ranges, users can achieve precise pressure management with inlet pressures up to 6000 psig and operating temperatures up to 500°F. Each regulator includes stainless steel components that resist atmospheric corrosion, ensuring longevity and reliability in demanding environments.

Product Specifications

Options 0

Wetted materials of construction: MonelÂ®, HastelloyÂ®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, stainless steel

Specifications Diaphragm Backing Material

Stainless Steel

Specifications Diaphragm Facing Material

TeflonÂ®

Specifications Diaphragm Type

Standard diaphragm

Specifications Flow Coefficient Cv

0.20

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 260 ÂºC | -40 to 500 ÂºF

Specifications Outlet Range

0 to 250 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT standard (1/4" FNPT gauge ports)

Specifications Seat Material

Polyimide (metal knob)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

1.9 lbs
