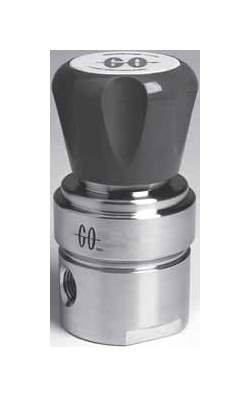

PR-1 Series Single Stage Pressure Regulator
PR-1 Series Single Stage Pressure Regulator
SKU:GOR-ef6770
Versatile single stage pressure regulator for precise pressure control in instrumentation and semiconductor applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
PR-1 Series Single Stage Pressure Regulator
$289.99
Quantity: 1
Claim Your Seller Account
PR-1 Series Single Stage Pressure Regulator
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PR-1 Series Single Stage Pressure Regulator is a versatile solution designed for precise pressure control in instrumentation sample systems, semiconductor processing gases, and various other applications. Constructed with 316L stainless steel body material for durable welded connections, this regulator features stainless steel caps and adjusting screws to prevent corrosion. The electropolished body surface finish enhances cleanliness and minimizes particle contamination in the flow stream. With multiple seat materials, alternate orifice sizes, and various pressure control ranges, including inlet pressures up to 6000 psig and operating temperatures up to 500°F, this regulator offers a wide range of capabilities for gas or liquid service.
Product Specifications
Options 0
Wetted materials of construction: Monel®, Hastelloy®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving
Specifications Body Material
316L Stainless Steel
Specifications Cap Assembly

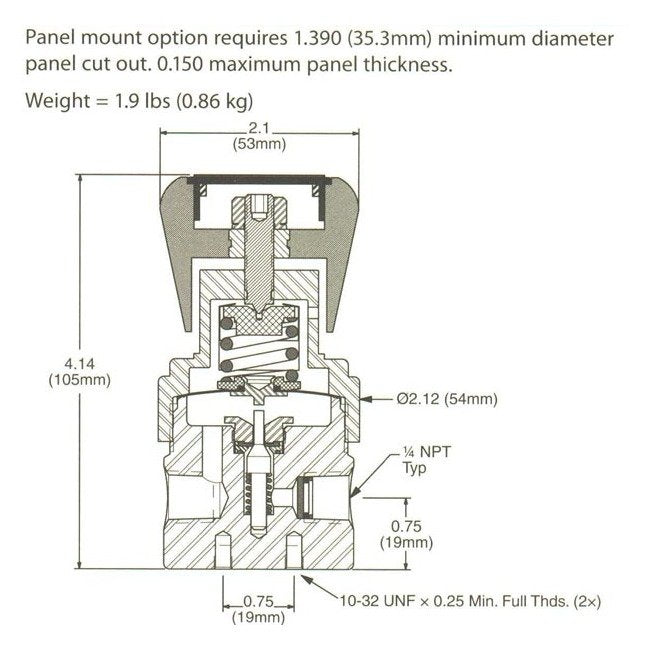

Panel mount, stainless steel
Specifications Diaphragm Backing Material
Stainless Steel
Specifications Diaphragm Facing Material
Teflon®
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.50
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 80 ºC | -40 to 175 ºF
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT standard (1/4" FNPT gauge ports)
Specifications Seat Material
CF Teflon®
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
