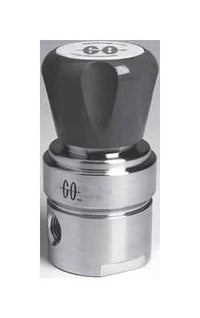

PR-1 Series Single Stage Pressure Regulator

Name: PR-1 Series Single Stage Pressure Regulator
Brand: Circle Valve Technologies Inc.
SKU: GOR-7278e3
Price: 249.99 USD
Availability: OutOfStock

SKU:GOR-7278e3

Versatile PR-1 Series Single Stage Pressure Regulator for precise pressure control in instrumentation and semiconductor applications.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-1 Series Single Stage Pressure Regulator is a versatile solution designed for instrumentation sample systems and semiconductor processing gases. Constructed with 316L stainless steel body and Teflon diaphragm, it offers precise pressure control in gas or liquid service. With adjustable outlet pressure ranges up to 500 psig, inlet pressures of 6000 psig, and operating temperatures from -40 to 260 °C, this regulator ensures optimal performance. Features like electropolished body, stainless steel cap, and various seat material options make it ideal for a wide range of applications, meeting stringent institutional procurement standards.

Product Specifications

Options 0

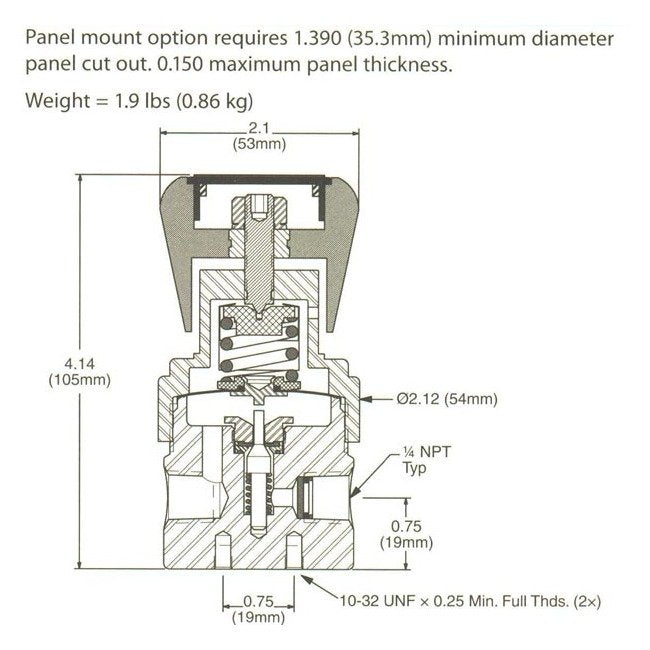

Wetted materials of construction: MonelÂ®, HastelloyÂ®, and titaniumDiaphragm attached poppetSpecial fittingsDiaphragm assist spring for vacuum purgingPanel mount (1 3/8" mounting hole)Relief valvesSpecial diaphragm assembly for water serviceSS inlet pressure gaugesSS outlet pressure gaugesBase-mounting bracketsCaptured ventSelf-relieving

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, stainless steel

Specifications Diaphragm Backing Material

Stainless Steel

Specifications Diaphragm Facing Material

TeflonÂ®

Specifications Diaphragm Type

Standard diaphragm

Specifications Flow Coefficient Cv

0.20

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 260 ÂºC | -40 to 500 ÂºF

Specifications Outlet Range

0 to 500 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT standard (1/4" FNPT gauge ports)

Specifications Seat Material

Polyimide (metal knob)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

1.9 lbs

PR-1 Series Single Stage Pressure Regulator
