PR-2 Series Brass Pressure Regulator
PR-2 Series Brass Pressure Regulator
SKU:GOR-519b5f
Compact brass pressure regulator for gas applications, ensures precise pressure control with durable construction and versatile compatibility.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
PR-2 Series Brass Pressure Regulator
$89.99
Quantity: 1
Claim Your Seller Account
PR-2 Series Brass Pressure Regulator
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PR-2 Series Brass Pressure Regulator is a compact, durable solution designed for gas applications, offering maximum flexibility and reliable performance. Constructed from high-quality brass with a stainless steel diaphragm lined with Teflon®, this regulator ensures safe and precise pressure control. With outlet pressure ranges from 0 - 750 psig, stainless steel poppet, and excellent finish quality, it meets the demanding needs of instrumentation services. Additionally, featuring a range of inlet and outlet connection options, optional cap finishes, and compatibility for panel mount installation, this regulator is versatile and cost-effective for both high and low pressure systems.
Product Specifications
Options 0

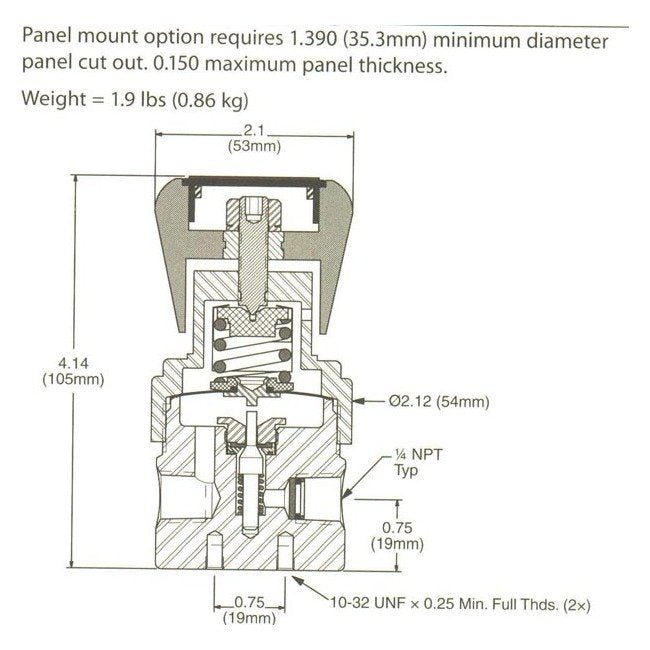

1/8" or 3/8" FNPT connectionsPanel mount (requires 1 3/8" mounting hole)Extra portsPressure gauges
Specifications Body Material
Brass
Specifications Cap Assembly
Panel mount, aluminum
Specifications Diaphragm Facingbacking Material
Teflon®/Stainless Steel
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.20
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 80 ºC | -40 to 175 ºF
Specifications Optional Cap Finish
Chrome plated | Electroless Nickel plated
Specifications Outlet Range
0 to 10 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT (1/4" FNPT gauge ports), standard
Specifications Seat Material
Polyimide
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra, Standard
Specifications Weight
1.9 lbs
