PR-2 Series Compact Cylinder Regulator
PR-2 Series Compact Cylinder Regulator
SKU:GOR-3cbbad
Optimal pressure control with PR-2 Series Compact Cylinder Regulator for varied applications. Brass construction, stainless steel diaphragm, precise gauges, and wide pressure range. -40°F to +175°F temp range.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
PR-2 Series Compact Cylinder Regulator
$129.99
Quantity: 1
Claim Your Seller Account
PR-2 Series Compact Cylinder Regulator
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

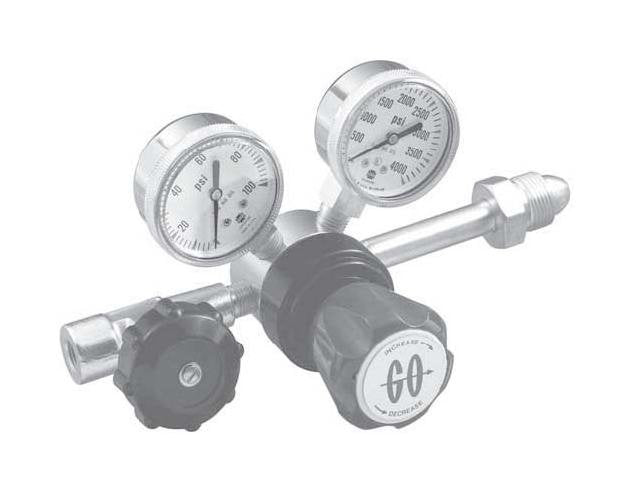

Meet the PR-2 Series Compact Cylinder Regulator, offering precise pressure control for various applications. Crafted from durable brass with a Teflon® lined stainless steel diaphragm, this regulator ensures reliable performance. Equipped with integral inlet filter, 2" diameter brass gauges, and suitable for non-corrosive gases, it operates efficiently in temperatures ranging from -40°F to +175°F. With a maximum inlet pressure of 3600 psig, this regulator caters to diverse pressure ranges from 0 - 750 psig, making it ideal for compressed gas cylinder applications.
Product Specifications
Specifications Body Material
Brass
Specifications Cap Assembly
Standard
Specifications Diaphragm Type
Standard diaphragm
Specifications Flow Coefficient Cv
0.06
Specifications Gauges
Include gauges
Specifications Max Operating Pressure
3600 psig
Specifications Operating Temperature
-40 to 150 ºF | -40 to 66 ºC
Specifications Outlet Range
0 to 25 psig
Specifications Port Configuration
Standard
Specifications Process Port Type
1/4" FNPT
Specifications Seat Material
Tefzel®
Specifications Series
CYL-1
Specifications Weight
1.9 lbs
