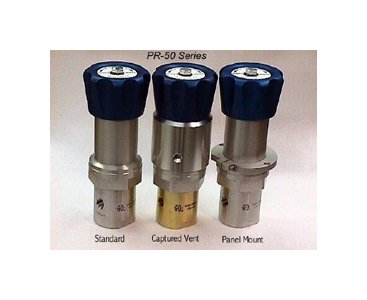

PR-50 Series High-Pressure Regulator

Name: PR-50 Series High-Pressure Regulator
Brand: Circle Valve Technologies Inc.
SKU: GOR-563392
Price: 299.99 USD
Availability: OutOfStock

SKU:GOR-563392

High-pressure regulator for gas or liquid services with stainless steel body and self-relieving feature. Ideal for R & D, gas regulation, and pilot plants.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-50 Series High-Pressure Regulator is a robust solution designed to meet the demanding requirements of outlet pressures up to 3000 psig. Crafted with precision, it boasts a stainless steel body for maximum corrosion resistance and safety. The optional self-relieving feature enhances operational ease by safely venting trapped downstream pressure. This unit includes an integral inlet filter to shield the seat from upstream contamination. With a wide range of pressure settings and materials, including 316L stainless steel or brass construction, this regulator ensures reliability and performance in gas or liquid services. Suitable for diverse applications like R & D systems, cylinder gas regulation, and pilot plants.

Product Specifications

Applications 0

R & D systemsCylinder gas regulationSampling systemsAirline charging cartsPilot plantsOff shore drillings

Specifications Body Material

316L Stainless Steel

Specifications Cap Assembly

Standard, aluminum

Specifications Diaphragm Facing Material

Stainless Steel

Specifications Diaphragm Type

Non-self-relieving

Specifications Flow Coefficient Cv

0.06

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 80 ÂºC | -40 to 175 ÂºF

Specifications Outlet Range

0 to 2000 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT

Specifications Seat Material

PCTFE (formerly Kel-FÂ® 81)

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

4.4 lbs

PR-50 Series High-Pressure Regulator
