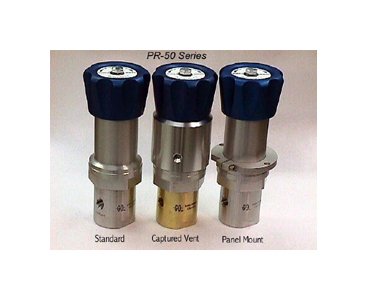

PR-50 Series High-Pressure Regulator

Name: PR-50 Series High-Pressure Regulator
Brand: Circle Valve Technologies Inc.
SKU: GOR-4b5759
Price: 219.99 USD
Availability: OutOfStock

SKU:GOR-4b5759

Ensure precise pressure control with the PR-50 Series High-Pressure Regulator, designed for demanding applications up to 3000 psig.

$219.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-50 Series High-Pressure Regulator is engineered to meet the rigorous requirements of applications demanding outlet pressures up to 3000 psig. Crafted with precision and durability in mind, this regulator boasts a stainless steel body for superior corrosion resistance. The optional self-relieving feature ensures operational ease by safely venting trapped downstream pressure. With an integral inlet filter safeguarding against contaminants, this regulator excels in gas or liquid service with an inlet pressure capability of 6000 psig. Ideal for R & D systems, cylinder gas regulation, pilot plants, and more.

Product Specifications

Applications 0

R & D systemsCylinder gas regulationSampling systemsAirline charging cartsPilot plantsOff shore drillings

Specifications Body Material

MonelÂ®

Specifications Cap Assembly

Standard, aluminum

Specifications Diaphragm Facing Material

Stainless Steel

Specifications Diaphragm Type

Non-self-relieving

Specifications Flow Coefficient Cv

0.025

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 80 ÂºC | -40 to 175 ÂºF

Specifications Outlet Range

0 to 500 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

4.4 lbs
