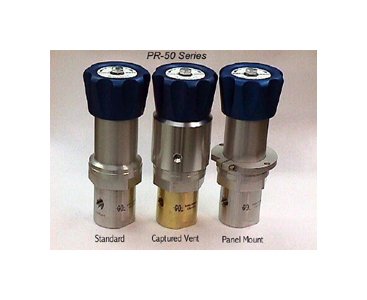

PR-50 Series High-Pressure Regulator

Name: PR-50 Series High-Pressure Regulator
Brand: Circle Valve Technologies Inc.
SKU: GOR-6831aa
Price: 249.99 USD
Availability: OutOfStock

SKU:GOR-6831aa

Precision-engineered PR-50 Series High-Pressure Regulator offering unrivaled corrosion protection and reliable performance for diverse applications.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-50 Series High-Pressure Regulator is a precision-engineered solution meeting the demands for outlet pressures up to 3000 psig, offering unrivaled corrosion protection. Crafted with a durable stainless steel body (brass optional), this regulator ensures maximum safety and corrosion resistance, essential for long-term reliability. The optional self-relieving feature enhances operational ease by safely venting trapped downstream pressure. With inlet pressure capabilities up to 6000 psig, outlet pressure ranges from 0 to 1000 psig, and a robust 316L stainless steel or brass construction, this regulator is ideal for gas or liquid service applications. It boasts a 20-micron inlet filter, bubble-tight shutoff, and various diaphragm material options, making it a versatile and reliable component for R & D systems, sampling systems, and more.

Product Specifications

Applications 0

R & D systemsCylinder gas regulationSampling systemsAirline charging cartsPilot plantsOff shore drillings

Specifications Body Material

Brass

Specifications Cap Assembly

Panel mount, aluminum

Specifications Diaphragm Facing Material

Stainless Steel

Specifications Diaphragm Type

Non-self-relieving

Specifications Flow Coefficient Cv

0.06

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 80 ÂºC | -40 to 175 ÂºF

Specifications Outlet Range

0 to 1000 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

4.4 lbs

PR-50 Series High-Pressure Regulator
