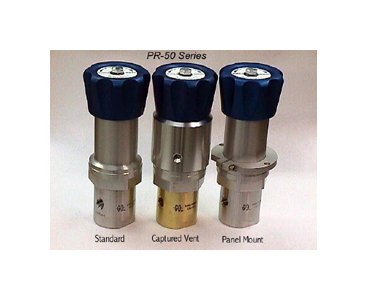

PR-50 Series Precision Pressure Regulator

Name: PR-50 Series Precision Pressure Regulator
Brand: Circle Valve Technologies Inc.
SKU: GOR-6700b6
Price: 249.99 USD
Availability: OutOfStock

SKU:GOR-6700b6

Experience precision control with the PR-50 Series Pressure Regulator, offering superior corrosion protection and reliable operation.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-50 Series Precision Pressure Regulator is engineered to meet the demanding requirements of controlling outlet pressures up to 3000 psig while ensuring superior corrosion protection. Constructed with a stainless steel body (optional brass) for maximum corrosion resistance, this regulator offers a reliable and safe operation. The optional self-relieving feature enhances operational ease by safely venting trapped downstream pressure to the atmosphere through the bonnet. Equipped with an integral inlet filter to protect against foreign contamination, this unit is suitable for gas or liquid service applications, with inlet pressure up to 6000 psig. With features like bubble-tight shutoff and a variety of outlet pressure ranges, this pressure regulator is designed for precision and durability.

Product Specifications

Applications 0

R & D systemsCylinder gas regulationSampling systemsAirline charging cartsPilot plantsOff shore drillings

Specifications Body Material

Brass

Specifications Cap Assembly

Standard, aluminum

Specifications Diaphragm Facing Material

Stainless Steel

Specifications Diaphragm Type

Non-self-relieving

Specifications Flow Coefficient Cv

0.20

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 80 ÂºC | -40 to 175 ÂºF

Specifications Outlet Range

0 to 500 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

4.4 lbs

PR-50 Series Precision Pressure Regulator
