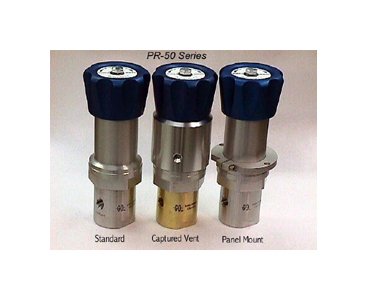

PR-50 Series Pressure Regulator - High-Pressure Brass Body

Name: PR-50 Series Pressure Regulator - High-Pressure Brass Body
Brand: Circle Valve Technologies Inc.
SKU: GOR-4336dc
Price: 149.99 USD
Availability: OutOfStock

SKU:GOR-4336dc

PR-50 Series Pressure Regulator - Brass body, 3000 psig, self-relieving feature, ideal for various applications.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The PR-50 Series Pressure Regulator is a reliable solution designed to meet demanding outlet pressure requirements of up to 3000 psig. Constructed with a robust brass body for superior corrosion resistance, it ensures safe and precise pressure control. The optional self-relieving feature enhances operational ease by venting trapped downstream pressure to the atmosphere. With an integral inlet filter and a variety of outlet pressure ranges, this regulator is ideal for gas or liquid services in various applications, including R & D systems, sampling systems, and pilot plants.

Product Specifications

Applications 0

R & D systemsCylinder gas regulationSampling systemsAirline charging cartsPilot plantsOff shore drillings

Specifications Body Material

Brass

Specifications Cap Assembly

Panel mount, aluminum

Specifications Diaphragm Facing Material

Stainless Steel

Specifications Diaphragm Type

Non-self-relieving

Specifications Flow Coefficient Cv

0.025

Specifications Max Operating Pressure

6000 psig

Specifications Operating Temperature

-40 to 80 ÂºC | -40 to 175 ÂºF

Specifications Outlet Range

0 to 500 psig

Specifications Port Configuration

Standard

Specifications Process Port Type

1/4" FNPT

Specifications Seat Material

Polyimide

Specifications Surface Finish Of Diaphragm Cavity

< 25 Ra, Standard

Specifications Weight

4.4 lbs
