PR-7LF High Sensitivity Pressure Reducing Regulator
PR-7LF High Sensitivity Pressure Reducing Regulator
SKU:GOP-56da1b
Premium single-stage pressure reducing regulator for precise low outlet pressure control in analytical instrumentation applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
PR-7LF High Sensitivity Pressure Reducing Regulator
$399.99
Quantity: 1
Claim Your Seller Account
PR-7LF High Sensitivity Pressure Reducing Regulator
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

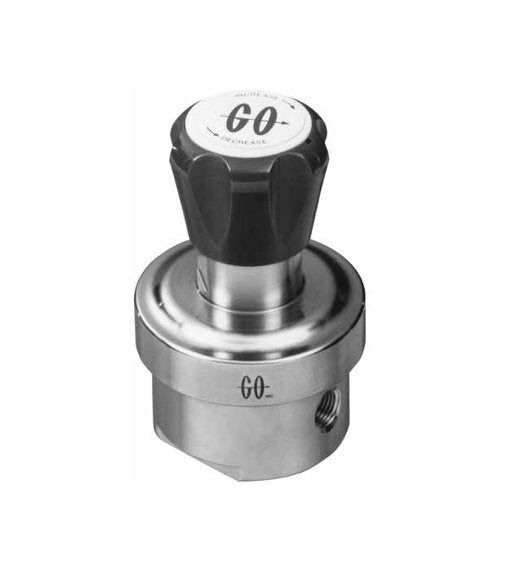

The PR-7LF High Sensitivity Single Stage Pressure Reducing Regulator from GO Regulator is specifically engineered to provide precise low outlet pressure control for analytical instrumentation applications. By leveraging the large diaphragm sensing area of the PR-7 Series and the low-flow seat assembly of the PR-1 Series, this regulator ensures pressure control accuracy down to 10 inches of water. With options for stainless steel or brass construction and the ability to accommodate special alloys upon request, this regulator offers exceptional durability and customization.
Product Specifications
Features And Specifications Features And Specifications
Sensitive pressure controlLow pressure adjustabilityStainless steel or Brass construction (optional MONEL® or HASTELLOY® C construction)Inlet pressure to 3600 psigAdjustable outlet pressure ranges 0 - 6, 0 - 25, 0 - 50, 0 - 75, 0 - 125, 0 - 250 psig and 500 psigCv flow coefficients of 0.025; 0.06; 0.20; 0.50Polytetrafluoroethylene (PTFE)/Fluorocarbon (FKM) diaphragm available up to 25 psig316L stainless steel or brass, INCONEL® and Tefzel®
Specifications Body Material
316L Stainless Steel, Stainless Steel Diaphragm
Specifications Cap Assembly
Standard, Stainless Steel
Specifications Diaphragm Backing Material
Metal Backing, Standard
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT) Gauge Port
Specifications Inlet And Outlet Connections
1/4 in. Female National Pipe Tapered (FNPT) Standard
Specifications Inlet Filter
20 µm
Specifications Operating Temperature
-40 to +250 ºF | -40 to +121 ºC
Specifications Outlet Range
0 to 50 psig
Specifications Port Configuration

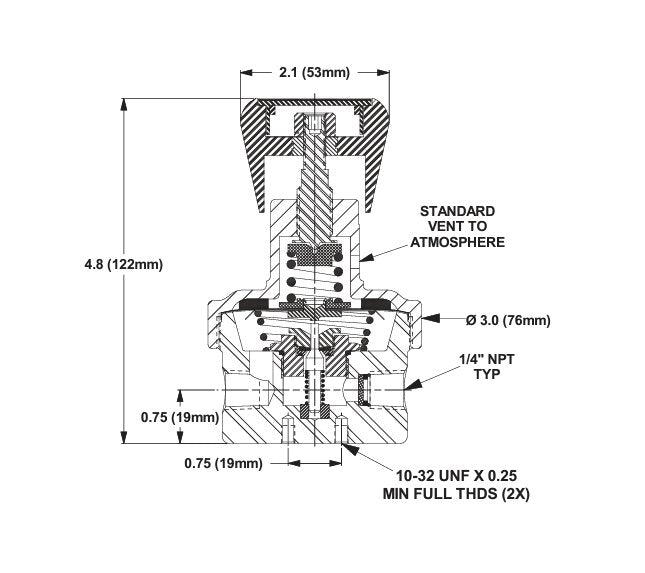

B - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Seat Material
Perfluoroelastomer (FFKM) (0.2 Cv only)
Specifications Surface Finish Of Diaphragm Cavity
< 25 Ra
Specifications Weight
3.2 lb | 1.45 kg
