PR10 Flush-Mounted Retainers - Unified Thread Size .164-32 (#8-32)

Name: PR10 Flush-Mounted Retainers - Unified Thread Size .164-32 (#8-32)
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-d70c8c
Price: 28.99 USD
Availability: OutOfStock

SKU:PEM-d70c8c

PR10 Stainless Steel Retainers for secure, flush-mount installation on metal sheets. Meets ASTM A380 standards.

$28.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

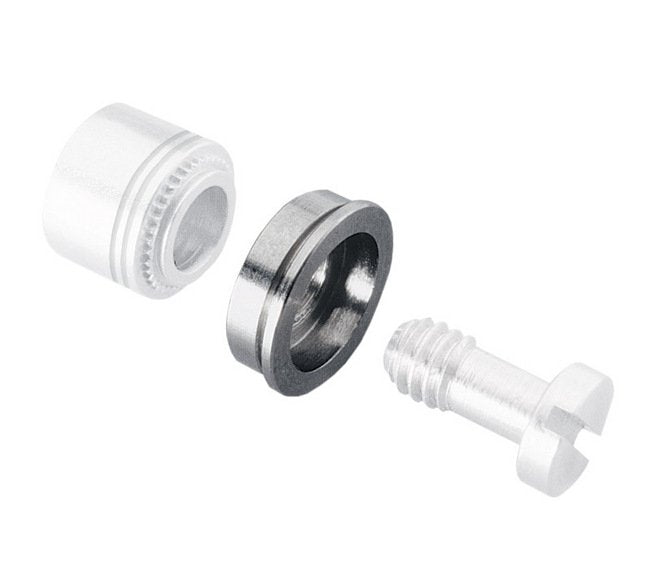

The PR10 Self-Clinching Flush-Mounted Retainers provide secure fastening solutions for metal sheets. Made of 300 Series Stainless Steel, these retainers feature a passivated finish, meeting ASTM A380 standards. With a thread specification of ANSI B1.1, 2B and designed for sheets with hardness HRB 70 or less, they ensure reliable performance. The PR10 retainers have a shank A max of .125 in and are suitable for sheets as thin as .050 in for self-clinching. Compliance with industry standards assures quality and precision in fastening applications.

Product Specifications

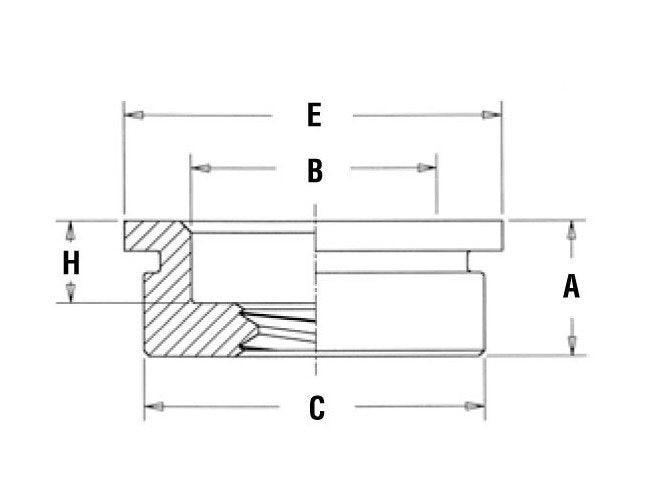

Specifications A Shank Max

.125 in

Specifications B Nom

.255 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

.343 in

Specifications E Nom

.370 in

Specifications Finish

Passivated and/or tested per ASTM A380

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.344 in

Specifications H Nom

.075 in

Specifications Material

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.34 in

Specifications Min Sheet For Flush Installation

.125 in

Specifications Min Sheet For Self Clinching

.050 in

Specifications Thread Code

832

Specifications Thread Size

.164-32 (#8;-32)

Specifications Thread Specification

ANSI B1.1, 2B

Specifications Type

PR10
