PR10 Metric Self-Clinching Flush-Mounted Retainers

Name: PR10 Metric Self-Clinching Flush-Mounted Retainers
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-a7a032
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-a7a032

PR10 Metric Self-Clinching Flush-Mounted Retainers, ANSI/ASME B1.13M, 300 Series Stainless Steel, Passivated, CAD Supplier: PennEngineering®

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

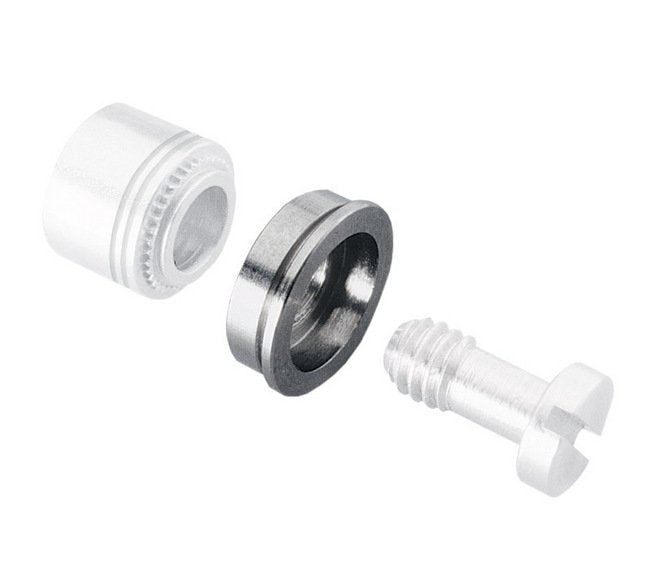

The PR10 Metric Self-Clinching Flush-Mounted Retainers are designed for precision installation in metal sheets as thin as 1.27mm, with a flush installation option for sheets as thick as 3.18mm. Crafted from 300 Series Stainless Steel and meeting ANSI/ASME standards, these retainers ensure secure and corrosion-resistant fastening. Ideal for applications with sheet hardness of HRB 70 or less, these retainers are passivated as per ASTM A380 for enhanced durability and reliability. With a CAD Supplier specification from PennEngineering®, these retainers guarantee precise fittings and lasting performance.

Product Specifications

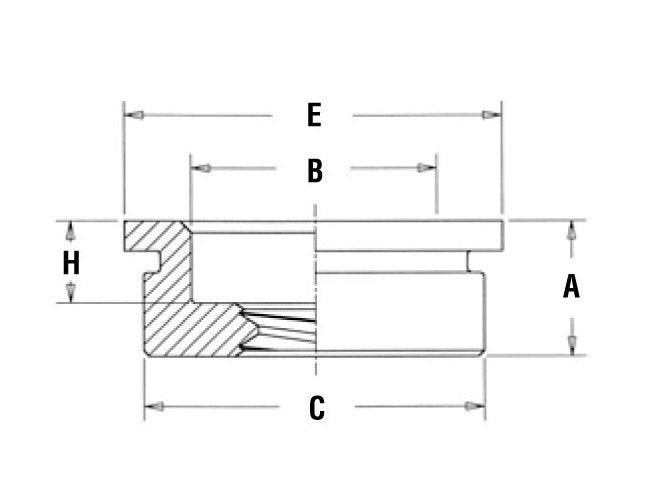

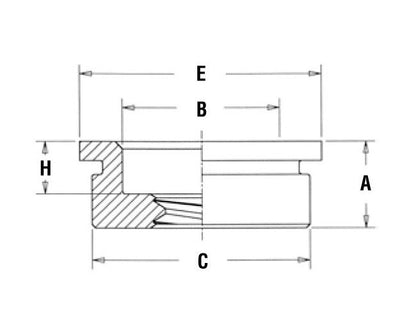

Specifications A Shank Max

3.18 mm

Specifications B Nom

7.37 mm

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

9.50 mm

Specifications E Nom

10.41 mm

Specifications Finish

Passivated and/or tested per ASTM A380

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 008

9.53 mm

Specifications H Nom

1.91 mm

Specifications Material

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

9.14 mm

Specifications Min Sheet For Flush Installation

3.18 mm

Specifications Min Sheet For Self Clinching

1.27 mm

Specifications Thread Code

Specifications Thread Size X Pitch

M5 x 0.8

Specifications Thread Specification

ANSI/ASME B1.13M, 6H

Specifications Type

PR10

PR10 Metric Self-Clinching Flush-Mounted Retainers
