PR10 Self-Clinching Flush-Mounted Retainers - Metric
PR10 Self-Clinching Flush-Mounted Retainers - Metric
SKU:PEM-56eef9
High-quality PR10 Self-Clinching Flush-Mounted Retainers in Metric thread size M3 x 0.5 for secure and durable fastening on metal sheets up to 3.18mm thickness.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
PR10 Self-Clinching Flush-Mounted Retainers - Metric
$24.99
Quantity: 1
Claim Your Seller Account
PR10 Self-Clinching Flush-Mounted Retainers - Metric
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

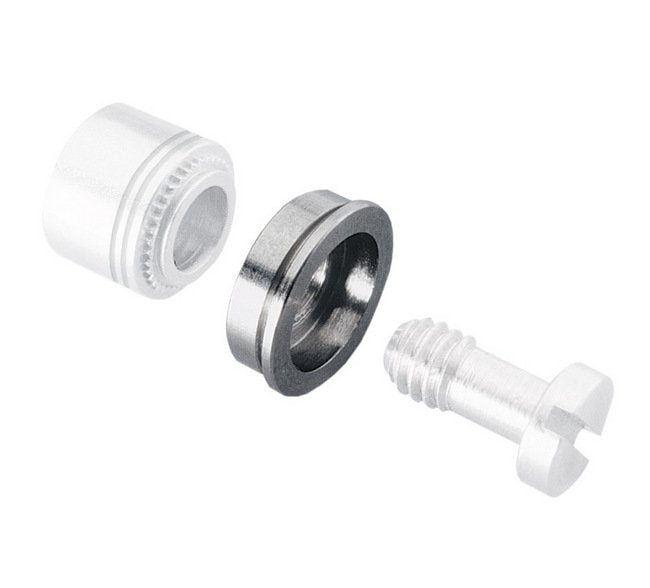

The PR10 Self-Clinching Flush-Mounted Retainers in Metric thread size M3 x 0.5 are engineered for precision and durability. Made from high-quality 300 series stainless steel and finished to ASTM A380 standards, these retainers offer reliable performance in metal sheets up to 3.18mm thickness. With ANSI/ASME B1.13M thread specifications and adherence to HRB 70 hardness requirements, they ensure secure fastening and longevity in industrial applications.
Product Specifications

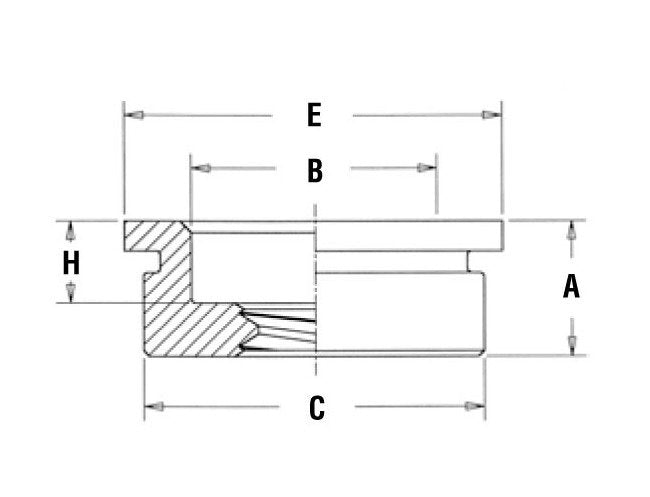

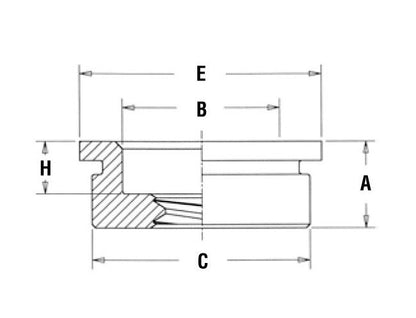

Specifications A Shank Max
3.18 mm
Specifications B Nom
4.75 mm
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
7.12 mm
Specifications E Nom
7.87 mm
Specifications Finish
Passivated and/or tested per ASTM A380
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 008
7.14 mm
Specifications H Nom
1.91 mm
Specifications Material
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
7.87 mm
Specifications Min Sheet For Flush Installation
3.18 mm
Specifications Min Sheet For Self Clinching
1.27 mm
Specifications Thread Code
M3
Specifications Thread Size X Pitch
M3 x 0.5
Specifications Thread Specification
ANSI/ASME B1.13M, 6H
Specifications Type
PR10
