PR10 Self-Clinching Retainers - Unified Thread

Name: PR10 Self-Clinching Retainers - Unified Thread
Brand: Hi-Tech Fasteners, Inc.
SKU: PEM-994ecb
Price: 24.99 USD
Availability: OutOfStock

SKU:PEM-994ecb

Secure & durable PR10 Self-Clinching Retainers in Unified Thread, ideal for metal sheets, passivated stainless steel with flush installation.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

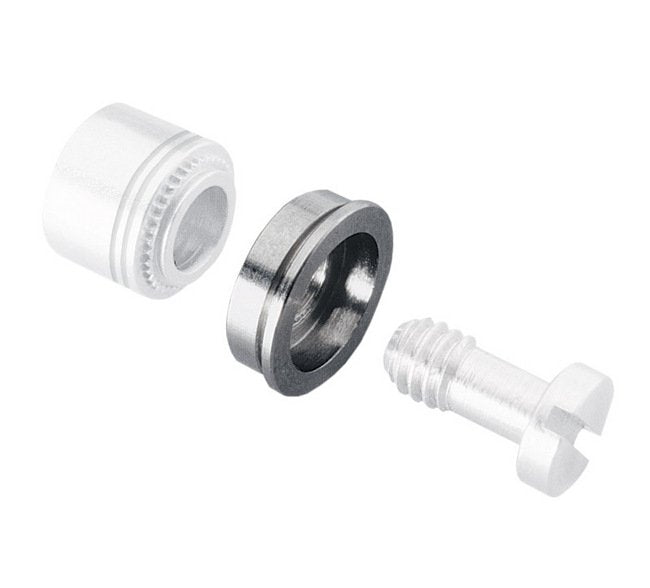

The PR10 Self-Clinching Flush-Mounted Retainers in Unified Thread Size .138-32 (#6-32) are designed for secure and permanent installation in metal sheets (.050 in min.) with flush installation capability (.125 in min.). Made of high-quality 300 Series Stainless Steel, these retainers are passivated and/or tested per ASTM A380 for enhanced corrosion resistance. With ANSI B1.1, 2B thread specification, these retainers are ideal for sheet hardness up to HRB 70 or HB 125. Trust PennEngineering's PEM® brand for top-notch quality and precision engineering.

Product Specifications

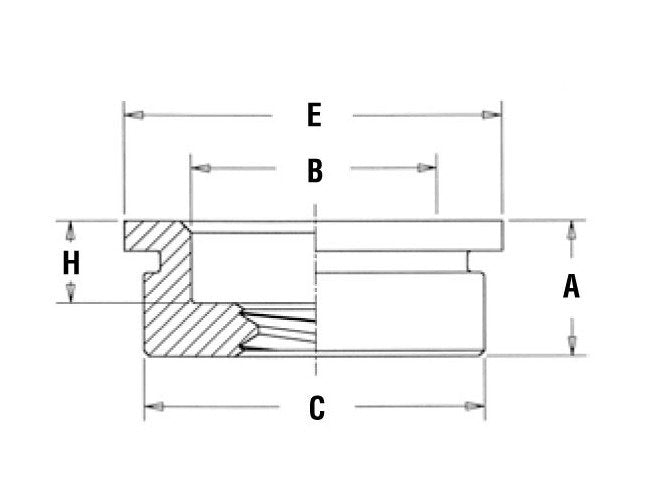

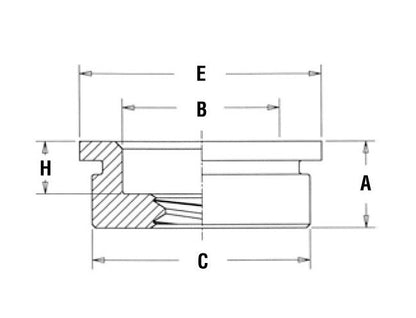

Specifications A Shank Max

.125 in

Specifications B Nom

.225 in

Specifications Cad Supplier

PennEngineeringÂ® (PEMÂ®)

Specifications C Max

.311 in

Specifications E Nom

.340 in

Specifications Finish

Passivated and/or tested per ASTM A380

Specifications For Use In Sheet Hardness

HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)

Specifications Hole Size In Sheet 0003 0000

.312 in

Specifications H Nom

.075 in

Specifications Material

300 Series Stainless Steel

Specifications Min Dist Hole Cl To Edge

.330 in

Specifications Min Sheet For Flush Installation

.125 in

Specifications Min Sheet For Self Clinching

.050 in

Specifications Thread Code

632

Specifications Thread Size

.138-32 (#6;-32)

Specifications Thread Specification

ANSI B1.1, 2B

Specifications Type

PR10

PR10 Self-Clinching Retainers - Unified Thread
