PR10 Stainless Steel Self-Clinching Retainers
PR10 Stainless Steel Self-Clinching Retainers
SKU:PEM-b6d70a
Securely fasten metal sheets with PR10 Self-Clinching Retainers in 300 Series Stainless Steel. ANSI B1.1 compliant for reliability.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
PR10 Stainless Steel Self-Clinching Retainers
$25.99
Quantity: 1
Claim Your Seller Account
PR10 Stainless Steel Self-Clinching Retainers
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

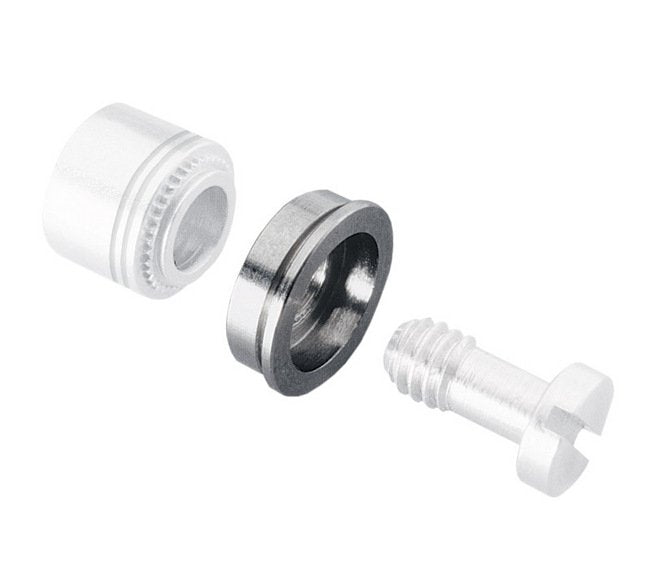

The PR10 Self-Clinching Flush-Mounted Retainers are designed for secure fastening in metal sheets, with specifications including a thread size of .112-40 (#4-40) and 300 Series Stainless Steel material. These retainers feature a passivated finish, ensuring durability and longevity. Meeting ANSI B1.1 thread specifications, they are ideal for applications requiring high reliability and sheet hardness of HRB 70 or less. Trust PennEngineering® (PEM®) for top-quality solutions compliant with ASTM A380 standards.

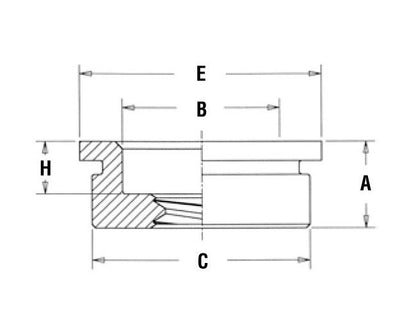

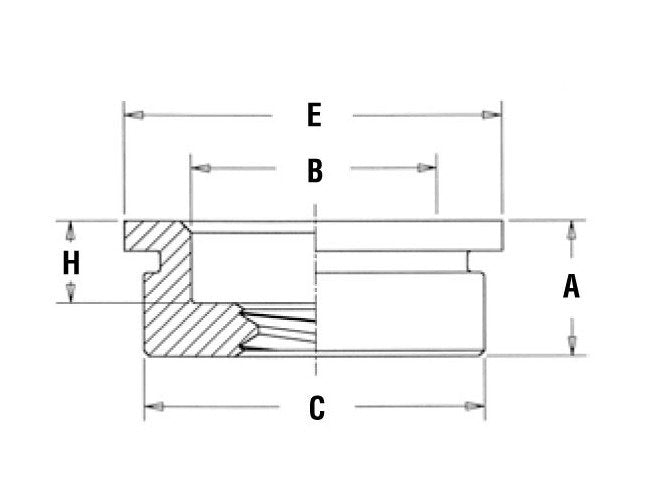

Product Specifications
Specifications A Shank Max
.125 in
Specifications B Nom
.195 in
Specifications Cad Supplier
PennEngineering® (PEM®)
Specifications C Max
.280 in
Specifications E Nom
.310 in
Specifications Finish
Passivated and/or tested per ASTM A380
Specifications For Use In Sheet Hardness
HRB 70 or Less (Hardness Rockwell âBâ Scale) / HB 125 or Less (Hardness Brinell)
Specifications Hole Size In Sheet 0003 0000
.281 in
Specifications H Nom
.075 in
Specifications Material
300 Series Stainless Steel
Specifications Min Dist Hole Cl To Edge
.31 in
Specifications Min Sheet For Flush Installation
.125 in
Specifications Min Sheet For Self Clinching
.050 in
Specifications Thread Code
440
Specifications Thread Size
.112-40 (#4;-40)
Specifications Thread Specification
ANSI B1.1, 2B
Specifications Type
PR10
